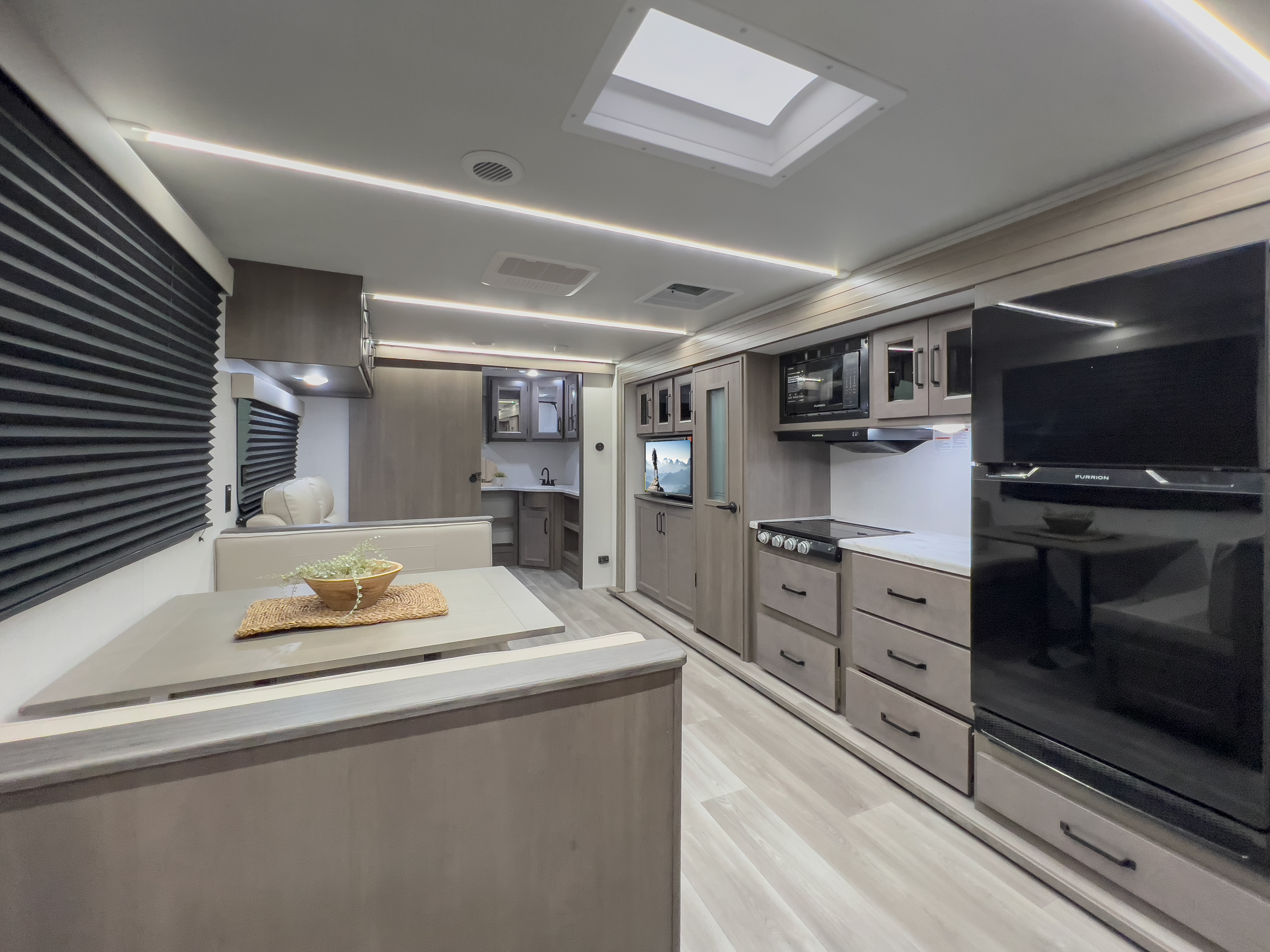

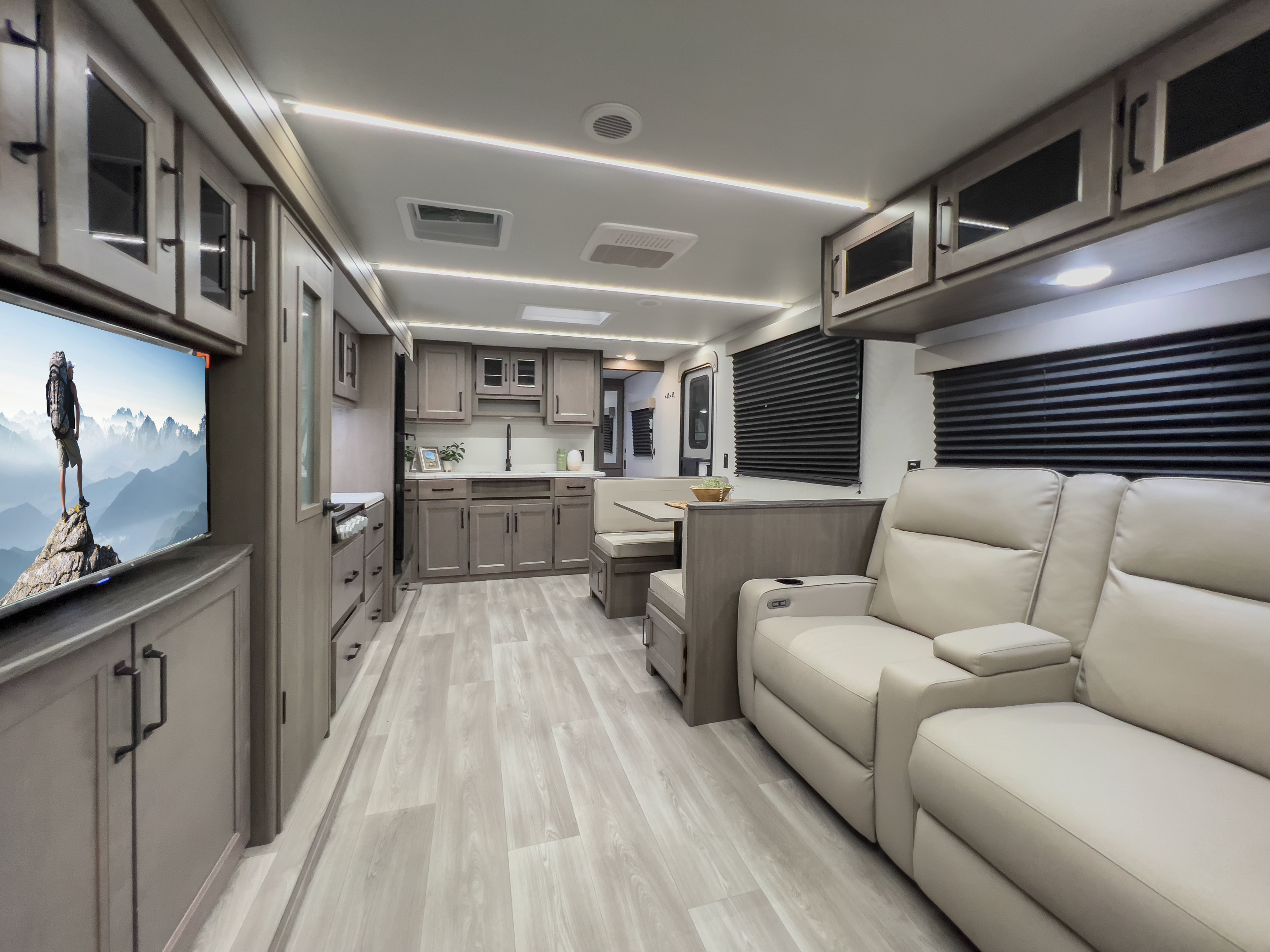

This travel trailer floorplan features a rear bathroom, mid living area/kitchen and front Queen Bed.

The perfect camper for couples. Get more than just a master suite; the extended bathroom allows you to take up more space, while the living area offers a variety of seating options for optimal comfort.

Hitch
627
UVW
6,147
GVWR
7,695
Length
31' 6"
Height
11'
Sleeps
4
MSRP
$38,704
DOWNLOAD SPEC SHEET

OVERALL SIZE
Exterior Height 11'
Exterior Height (w/opt. AC)    0'
Exterior Length 31' 6"
Exterior Width 8'
Exterior Width (w/ slide out) 11'
Interior Height 78"

WEIGHTS
Hitch / Pin Weight 627
UVW 6,147
GVWR 7,695

CAPACITY
Fresh Water Capacity 62
Grey Water Capacity 78
Waste Water Capacity 39
Propane Tanks 2
LPG 40
Sleeping Capacity 4
APPLIANCES
Water Heater
Refrigerator 8 cu. ft.
Furnace 35,000 BTU
AC 15,000 BTU

RUNNING GEAR
Axles 2
Wheel Size 15 in.
Tire Size ST205/75R15LRD

CONSTRUCTION
Construction Type Traditional
Floor R-Value R-11
Wall R-Value R-9
Roof R-Value R-40
Slide Room R-Value R-9
DIMENSIONS
Standard Bed 60 x 80 Queen Bed
Standard Bunk N/A
Shower 27" x 36"

EXTERIOR
Slides 1
Awnings 1
Awning Length 19'
EXTERIOR
  • Power Tongue Jack
  • Solar Power Inlet
  • Black Tank Flush
  • 20# LP Bottles (2) with Cover
  • Friction Hinge Entry Door
  • Walk-on Roof
  • Easy Access Low Point Drain Valves
  • Spare Tire w/ Carrier
  • Magnetic Storage Door Catches
  • Extended Grab Handle
  • Rear Ladder
  • Tinted Windows
  • Upgraded STRONGWALL Metal Exterior

CONSTRUCTION
  • TPO Roof Membrane w/ 18 Year Warranty
  • Insulated Storage Doors
  • Rear Wall Insulation (R-9)
  • Side Walls Insulation (R-9)
  • Slideroom Roof and End Wall Insulation (R-9)
  • Main Floor Insulation (R-11)
  • Roof Insulation (R-40)
  • Heated and Enclosed Underbelly w/ Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation w/ Thermofoil
  • Moisture Barrier Floor Enclosure

ELECTRICAL
  • Battery Kill Switch (Pass Thru)
  • USB Ports (2)
  • More Power Outlets
  • LED Interior Lighting
  • Power Awning
  • Detachable Power Cord w/ LED Light
  • Motion Sensor Lights in Key Areas
  • 165W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • Solar Charge Controller
INTERIOR
  • Large Solid Bedroom Door (Master Suite)
  • Power Vent Fan in Bath and Living Room
  • Solid Hardwood Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Residential Countertops
  • Upgraded Residential Furniture
  • 78" Interior Height

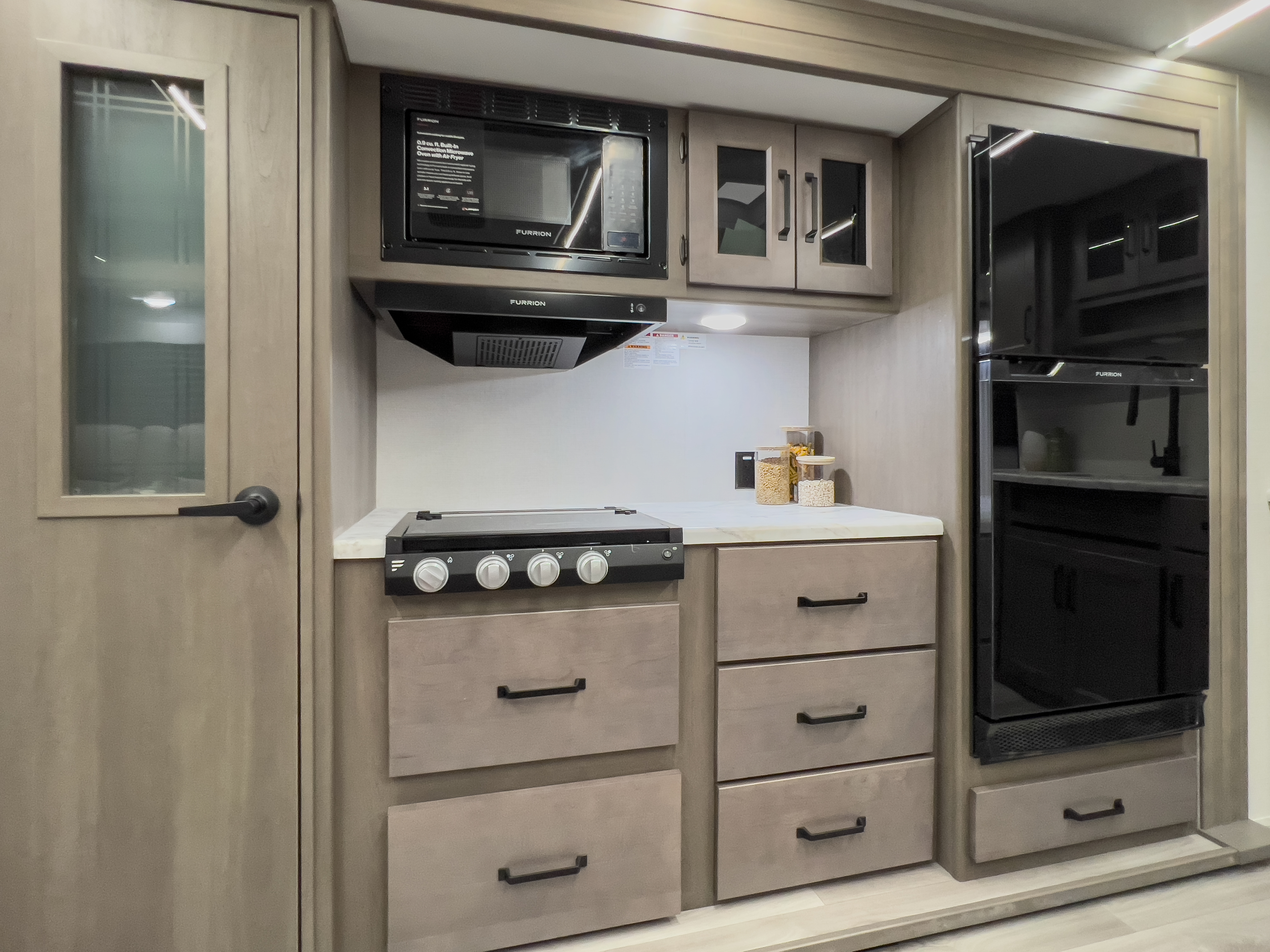

KITCHEN

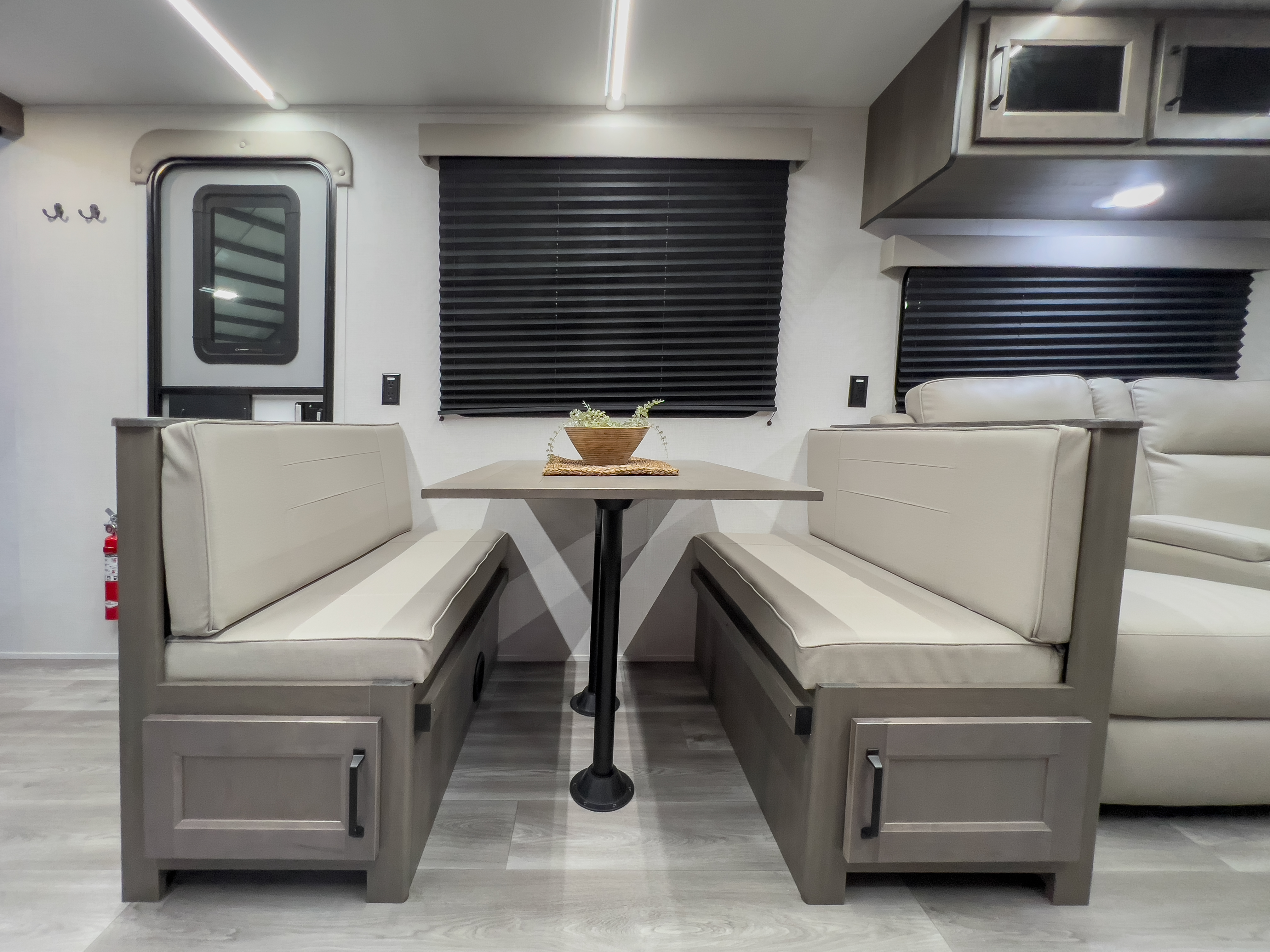

  • Residential Booth Dinette
  • Residential Cabinet Doors
  • Deep Seated Stainless Steel Sink

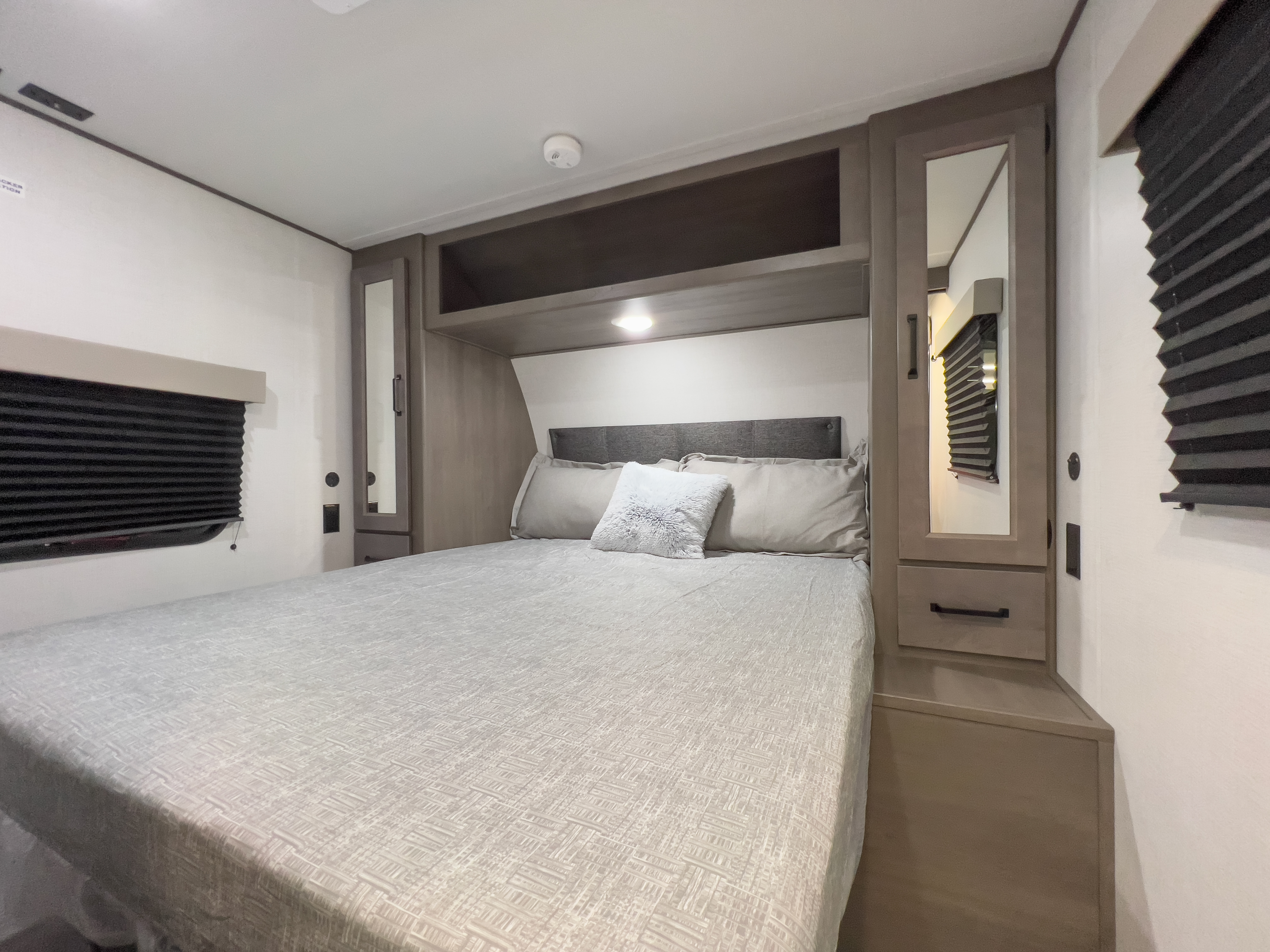

BEDROOM
  • Residential Bedspread
  • Master Suite w/ 60" x 80" Queen Bed
  • E-Z Lift Bed Storage w/ Struts

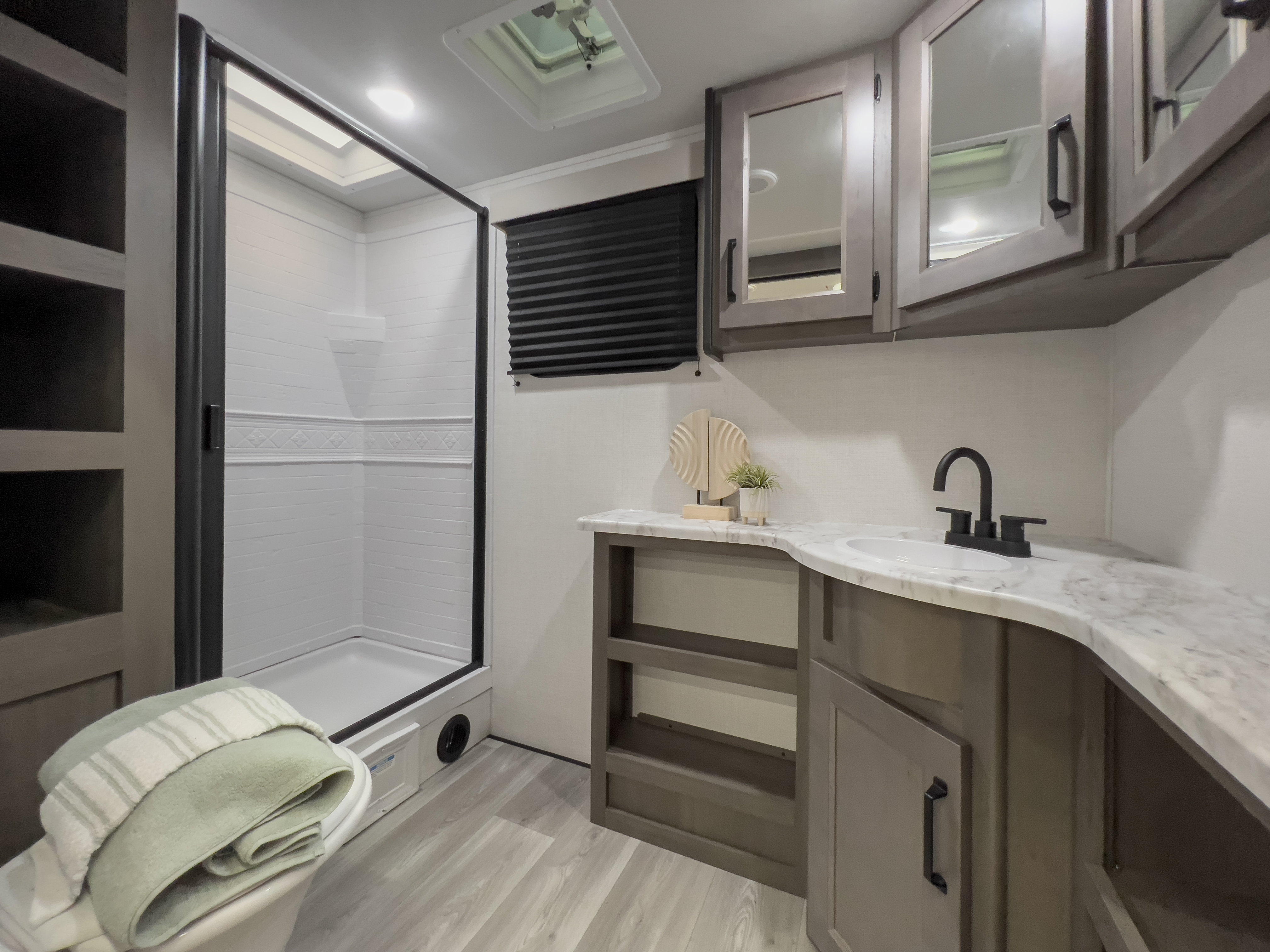

BATHROOM
  • Walk-in Shower
  • Medicine Cabinet with Mirror
  • ABS Tub Surround
  • Foot Flush Toilet
PLUMBING
  • High-Capacity Water Pump
  • Extra Large 2" Fresh Water Drain Valve
  • Oversized Tank Capacites
  • 62 Gallon Fresh Water Capacity
  • High Rise Faucet with Pull Down Sprayer
  • 6 Gal DSI Quick Recovery Water Heater
  • E-Z Winterization
  • All-in-One Utility Center

ELECTRONICS
  • Cable/Sat Prep
  • AM/FM/Bluetooth Stereo
  • Exterior Speakers
  • Backup Camera Prep
  • HD LED TV
  • HD TV Antenna

APPLIANCE
  • Microwave
  • 3-Burner Range with Oven
  • 12V 8 cu. ft. Refrigerator

HVAC
  • 35K BTU High Capacity Furnace
  • Attic Vent
  • Main A/C Ducted
  • EvenFlow Ductless Heating System Throughout

RUNNING GEAR
  • Nitrogen Filled Radial Tires
Elevation Package
  • 78” Interior Height
  • Master Suite w/ 60” x 80” Queen Bedv
  • 62 Gallon Fresh Water Capacity
  • Spare Tire w/ Carrier
  • Black Tank Flush
  • Nitrogen Filled Radial Tires
  • Magnetic Storage Door Catches
  • Foot Flush Toilet
  • Residential Booth Dinette
  • Extended Grab Handle
  • Rear Ladder
  • E-Z Lift Bed Storage w/ Struts
  • Tinted Windows
  • High Rise Faucet with Pull Down Sprayer
  • Residential Cabinet Doors
  • On-Demand Water Heater (60K BTU)
  • Deep Seated Stainless Steel Sink
  • 12 Volt Double Door Refrigerator
Season Protection Package
  • Heated and Enclosed Underbelly w/ Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation w/ Thermofoil
  • Moisture Barrier Floor Enclosure
  • 35k BTU High Capacity Furnace
  • Attic Vent
  • Double Insulated Roof (R-40*)
  • 15k Ducted AC
  • Dual 20lb LP Tanks with Cover
  • EvenFlow Ductless Heating System Throughout
  • E-Z Winterization
  • All-in-One Utility Center
Power Package
  • LED Interior Lighting
  • Power Tongue Jack
  • Power Awning
  • AM/FM/Bluetooth Stereo
  • Exterior Speakers
  • Detachable Power Cord w/ LED Light
  • USB Port
  • Motion Sensor Lights in Key Areas
  • Backup Camera Prep
  • Battery Disconnect Switch
  • HD TV Antenna
Solar Package
  • 165W Roof Mounted Solar Panel
  • Roof Mounted MC4 Quick Connect Plugs
  • 25 Amp Solar Charge Controller
  • Battery Monitor
  • 12V 8 cu. ft. Refrigerator
