Hitch
    583
    UVW
    5,756
    GVWR
    6,995
    Length
    29' 11"
    Height
    11'
    Sleeps
    8
    MSRP
    $29,492
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height11'
    Exterior Height (w/opt. AC)
      Exterior Length29' 11"
      Exterior Width8'
      Exterior Width (w/ slide out)N/A
      Interior Height6' 6"

      WEIGHTS
      Hitch / Pin Weight583
      UVW5,756
      GVWR6,995

      CAPACITY
      Fresh Water Capacity56
      Gray Water Capacity78
      Waste Water Capacity39
      Propane Tanks2
      LPG40
      Sleeping Capacity8
      APPLIANCES
      Water Heater6 Gal. Gas/Electric
      Refrigerator10.70 cu. ft.
      Furnace35,000 BTU
      AC13,500 BTU

      RUNNING GEAR
      Axles2
      Wheel Size15 in.
      Tire SizeST205/75R15LRD

      CONSTRUCTION
      Construction TypeTraditional
      Floor R-ValueR-11
      Wall R-ValueR-9
      Roof R-ValueR-40
      Slide Room R-ValueR-9
      DIMENSIONS
      Standard Bed60 X 80 Queen Bed
      Standard Bunk(2) 46 x 76" Bunks
      Shower27" x 36"

      EXTERIOR
      SlidesN/A
      Awnings1
      Awning Length15'
      EXTERIOR
      • Power Tongue Jack
      • Solar Power Inlet
      • Black Tank Flush
      • 20# LP Bottles (2) with Cover
      • Friction Hinge Entry Door
      • Walk-on Roof
      • Easy Access Low Point Drain Valves
      • Spare Tire w/ Carrier
      • Magnetic Storage Door Catches
      • Extended Grab Handle
      • Tinted Windows
      • Leash Link/Bottle Opener

      CONSTRUCTION
      • TPO Roof Membrane w/ Limited Lifetime Warranty
      • Insulated Storage Doors
      • Rear Wall Insulation (R-9)
      • Side Walls Insulation (R-9)
      • Slideroom Roof and End Wall Insulation (R-9)
      • Main Floor Insulation (R-11)
      • Roof Insulation (R-40)
      • Heated and Enclosed Underbelly w/ Suspended Tanks
      • Designated Heat Duct to Subfloor
      • Thermofoil over Roof & Front Cap
      • Moisture Barrier Floor Enclosure

      ELECTRICAL
      • Battery Kill Switch (Pass Thru)
      • USB Ports (2)
      • More Power Outlets
      • Power Awning w/ LED Light
      • Detachable Power Cord w/ LED Light
      • Motion Sensor Lights in Key Areas
      • Roof Mounted Quick Connect Plugs
      INTERIOR
      • Power Vent Fan in Bath
      • Solid Hardwood Drawer Fronts
      • Solid Core Cabinet Stiles
      • Pre-Drilled and Screwed Cabinetry
      • Ball Bearing Full Extension Drawer Glides
      • Residential Countertops
      • Upgraded Residential Furniture
      • 78" Interior Height
      • Pull-Out Trash Can Storage
      • Pet Friendly Dog Bowls

      KITCHEN
      • Residential Booth Dinette
      • Residential Cabinet Doors
      • Deep Seated Stainless Steel Sink

      BEDROOM
      • Residential Bedspread
      • Master Suite w/ 60" x 80" Queen Bed
      • E-Z Lift Bed Storage w/ Struts

      BATHROOM
      • Walk-in Shower
      • ABS Tub Surround
      • Foot Flush Toilet
      SOLAR
      • 600W Universal Solar Prep
      • 30 Amp Solar Controller Prep
      • 2000W Inverter Prep
      • Solar Disconnect Switch
      • Battery Disconnect Switch

      PLUMBING
      • High-Capacity Water Pump
      • Extra Large 2" Fresh Water Drain Valve
      • Oversized Tank Capacites
      • 56 Gallon Fresh Water Capacity
      • High Rise Faucet with Pull Down Sprayer
      • E-Z Winterization

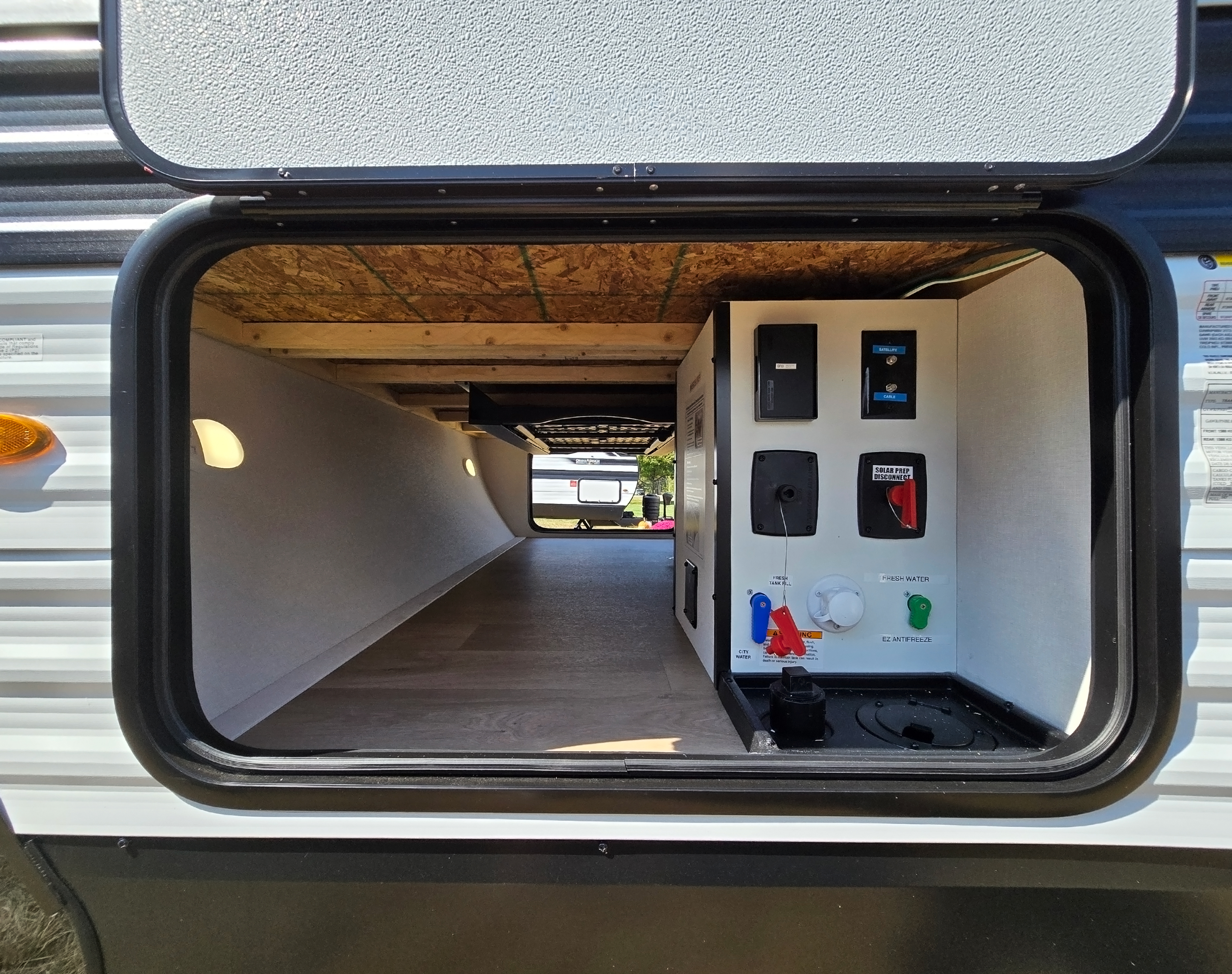

      • All-in-One Utility Center

      ELECTRONICS
      • Cable/Sat Prep
      • JBL Exterior Speaker
      • Backup Camera Prep
      • HD TV Antenna

      APPLIANCE
      • Microwave
      • 3-Burner Range
      • 12V 10.2 Cu. Ft. Refrigerator

      HVAC
      • 35K BTU High Capacity Furnace
      • Attic Vent
      • Main A/C Ducted
      • EvenFlow Ductless Heating System Throughout
      Elevation Package
      • 78” Interior Height
      • Master Suite w/ 60” x 80” Queen Bed
      • Spare Tire w/ Carrier
      • Black Tank Flush
      • Magnetic Storage Door Catches
      • Foot Flush Toilet
      • Residential Booth Dinette
      • Extended Grab Handle
      • E-Z Lift Bed Storage w/ Struts
      • Tinted Windows
      • High Rise Faucet with Pull Down Sprayer
      • Residential Cabinet Doors
      • Deep Seated Stainless Steel Sink
      • Solid Wood Drawer Fronts
      • Black Automotive Glass Entry Door
      • Galvanized Steel Wheel Wells
      Season Protection Package
      • Heated and Enclosed Underbelly w/ Suspended Tanks
      • Designated Heat Duct to Subfloor
      • Thermofoil over Roof & Front Cap
      • Moisture Barrier Floor Enclosure
      • 35K BTU High Capacity Furnace
      • Attic Vent
      • Main A/C Ducted
      • Dual 20# LP Tanks with Cover
      • EvenFlow Ductless Heating System Throughout
      • E-Z Winterization
      • All-in-One Utility Center
      Power Package
      • Power Tongue Jack
      • Power Awning w/ LED Light
      • JBL Head Unit
      • JBL Exterior Speaker
      • Detachable Power Cord w/ LED Light
      • USB Port
      • Motion Sensor Lights in Key Areas
      • Backup Camera Prep
      • Battery Disconnect Switch
      • HD TV Antenna
      Solar Package
      • 600W Solar Prep
      • 30 AMP Solar Controller Prep
      • 2000W Inverter Prep
      • Roof Mounted Quick Connect Plugs
      • 12V 8 Cu. Ft. Refrigerator
      • Solar Disconnect
