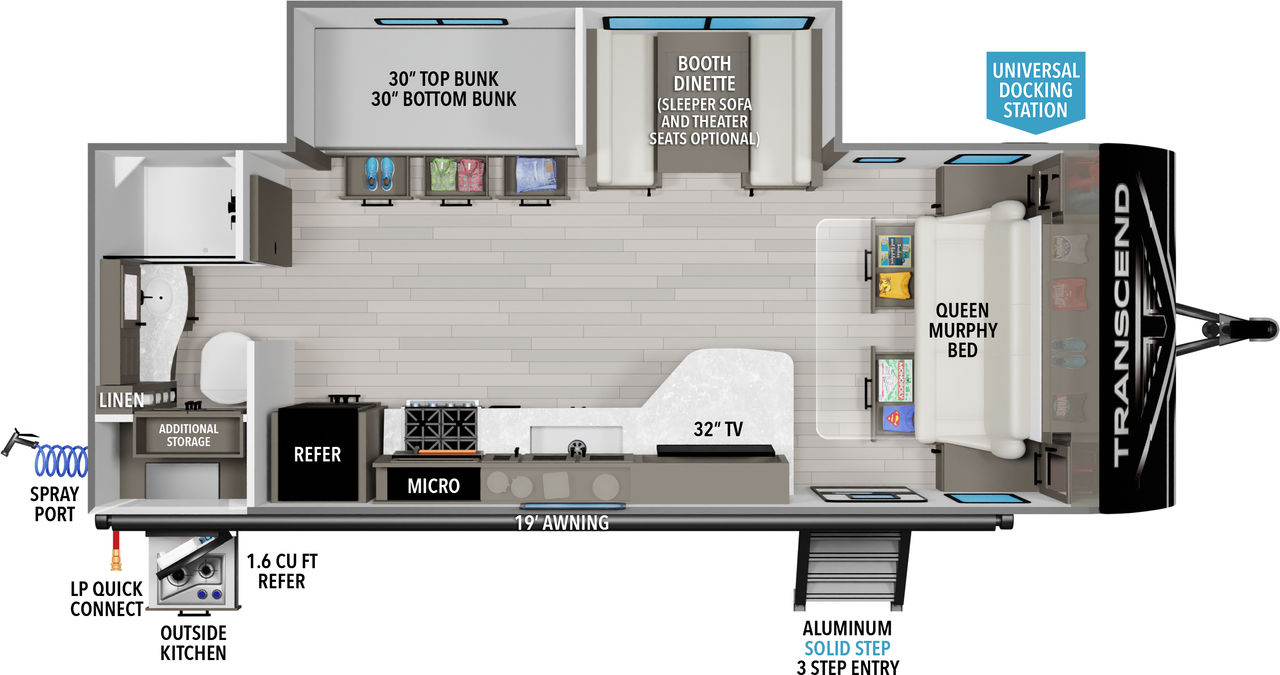

This travel trailer floorplan features a rear bathroom with bunks, booth dinette and front Queen Murphy Bed.

Posh, but practical. Luxury features and useful amenities make this bunkhouse travel trailer great for families or couples that want to travel comfortably with guests.

Hitch
532
UVW
5,462
GVWR
6,995
Length
26' 4"
Height
11'
Sleeps
6
MSRP
$37,348
DOWNLOAD SPEC SHEET

OVERALL SIZE
Exterior Height 11'
Exterior Height (w/opt. AC)    0'
Exterior Length 26' 4"
Exterior Width 8'
Exterior Width (w/ slide out) 11'
Interior Height 78"

WEIGHTS
Hitch / Pin Weight 532
UVW 5,462
GVWR 6,995

CAPACITY
Fresh Water Capacity 62
Grey Water Capacity 78
Waste Water Capacity 39
Propane Tanks 2
LPG 40
Sleeping Capacity 6
APPLIANCES
Water Heater
Refrigerator 8 cu. ft.
Furnace 35,000 BTU
AC 15,000 BTU

RUNNING GEAR
Axles 2
Wheel Size 15 in.
Tire Size ST205/75R15LRD

CONSTRUCTION
Construction Type Traditional
Floor R-Value R-11
Wall R-Value R-9
Roof R-Value R-40
Slide Room R-Value R-9
DIMENSIONS
Standard Bed 60 X 80 Queen Bed
Standard Bunk 32" x 72" over 34" x 72"
Shower 27" x 36"

EXTERIOR
Slides 1
Awnings 1
Awning Length 19'
EXTERIOR
  • Power Tongue Jack
  • Solar Power Inlet
  • Black Tank Flush
  • 20# LP Bottles (2) with Cover
  • Friction Hinge Entry Door
  • Walk-on Roof
  • Easy Access Low Point Drain Valves
  • Spare Tire w/ Carrier
  • Magnetic Storage Door Catches
  • Extended Grab Handle
  • Rear Ladder
  • Tinted Windows
  • Upgraded STRONGWALL Metal Exterior

CONSTRUCTION
  • TPO Roof Membrane w/ 18 Year Warranty
  • Insulated Storage Doors
  • Rear Wall Insulation (R-9)
  • Side Walls Insulation (R-9)
  • Slideroom Roof and End Wall Insulation (R-9)
  • Main Floor Insulation (R-11)
  • Roof Insulation (R-40)
  • Heated and Enclosed Underbelly w/ Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation w/ Thermofoil
  • Moisture Barrier Floor Enclosure

ELECTRICAL
  • Battery Kill Switch (Pass Thru)
  • USB Ports (2)
  • More Power Outlets
  • LED Interior Lighting
  • Power Awning
  • Detachable Power Cord w/ LED Light
  • Motion Sensor Lights in Key Areas
  • 165W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • Solar Charge Controller
INTERIOR
  • Large Solid Bedroom Door (Master Suite)
  • Power Vent Fan in Bath and Living Room
  • Solid Hardwood Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Residential Countertops
  • Upgraded Residential Furniture
  • 78" Interior Height

KITCHEN
  • Residential Booth Dinette
  • Residential Cabinet Doors
  • Deep Seated Stainless Steel Sink

BEDROOM
  • Residential Bedspread
  • Master Suite w/ 60" x 80" Queen Bed
  • E-Z Lift Bed Storage w/ Struts

BATHROOM
  • Walk-in Shower
  • Medicine Cabinet with Mirror
  • ABS Tub Surround
  • Foot Flush Toilet
PLUMBING
  • High-Capacity Water Pump
  • Extra Large 2" Fresh Water Drain Valve
  • Oversized Tank Capacites
  • 62 Gallon Fresh Water Capacity
  • High Rise Faucet with Pull Down Sprayer
  • 6 Gal DSI Quick Recovery Water Heater
  • E-Z Winterization
  • All-in-One Utility Center

ELECTRONICS
  • Cable/Sat Prep
  • AM/FM/Bluetooth Stereo
  • Exterior Speakers
  • Backup Camera Prep
  • HD LED TV
  • HD TV Antenna

APPLIANCE
  • Microwave
  • 3-Burner Range with Oven
  • 12V 8 cu. ft. Refrigerator

HVAC
  • 35K BTU High Capacity Furnace
  • Attic Vent
  • Main A/C Ducted
  • EvenFlow Ductless Heating System Throughout

RUNNING GEAR
  • Nitrogen Filled Radial Tires
Elevation Package
  • 78” Interior Height
  • Master Suite w/ 60” x 80” Queen Bedv
  • 62 Gallon Fresh Water Capacity
  • Spare Tire w/ Carrier
  • Black Tank Flush
  • Nitrogen Filled Radial Tires
  • Magnetic Storage Door Catches
  • Foot Flush Toilet
  • Residential Booth Dinette
  • Extended Grab Handle
  • Rear Ladder
  • E-Z Lift Bed Storage w/ Struts
  • Tinted Windows
  • High Rise Faucet with Pull Down Sprayer
  • Residential Cabinet Doors
  • On-Demand Water Heater (60K BTU)
  • Deep Seated Stainless Steel Sink
  • 12 Volt Double Door Refrigerator
Season Protection Package
  • Heated and Enclosed Underbelly w/ Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation w/ Thermofoil
  • Moisture Barrier Floor Enclosure
  • 35k BTU High Capacity Furnace
  • Attic Vent
  • Double Insulated Roof (R-40*)
  • 15k Ducted AC
  • Dual 20lb LP Tanks with Cover
  • EvenFlow Ductless Heating System Throughout
  • E-Z Winterization
  • All-in-One Utility Center
Power Package
  • LED Interior Lighting
  • Power Tongue Jack
  • Power Awning
  • AM/FM/Bluetooth Stereo
  • Exterior Speakers
  • Detachable Power Cord w/ LED Light
  • USB Port
  • Motion Sensor Lights in Key Areas
  • Backup Camera Prep
  • Battery Disconnect Switch
  • HD TV Antenna
Solar Package
  • 165W Roof Mounted Solar Panel
  • Roof Mounted MC4 Quick Connect Plugs
  • 25 Amp Solar Charge Controller
  • Battery Monitor
  • 12V 8 cu. ft. Refrigerator
