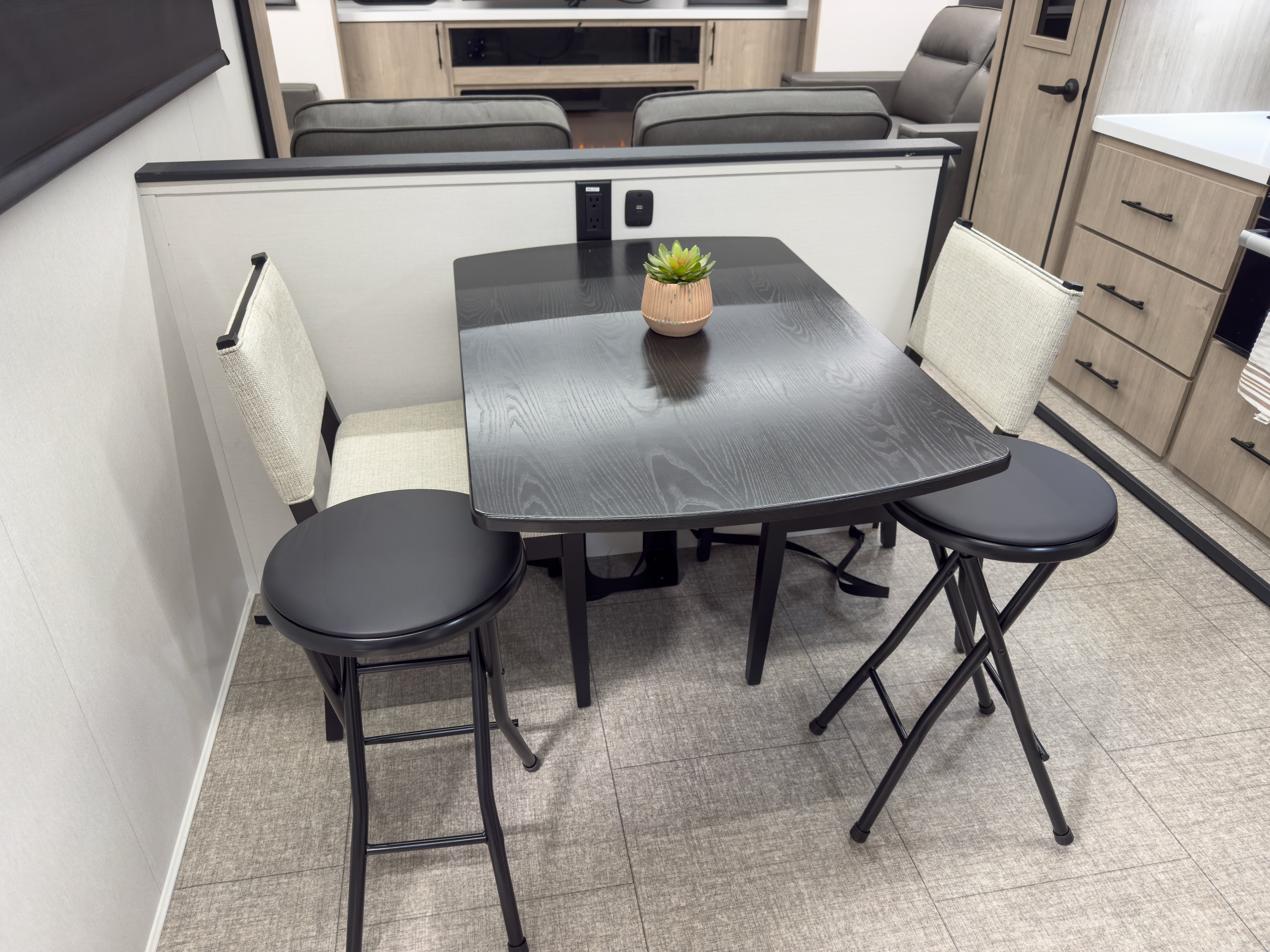

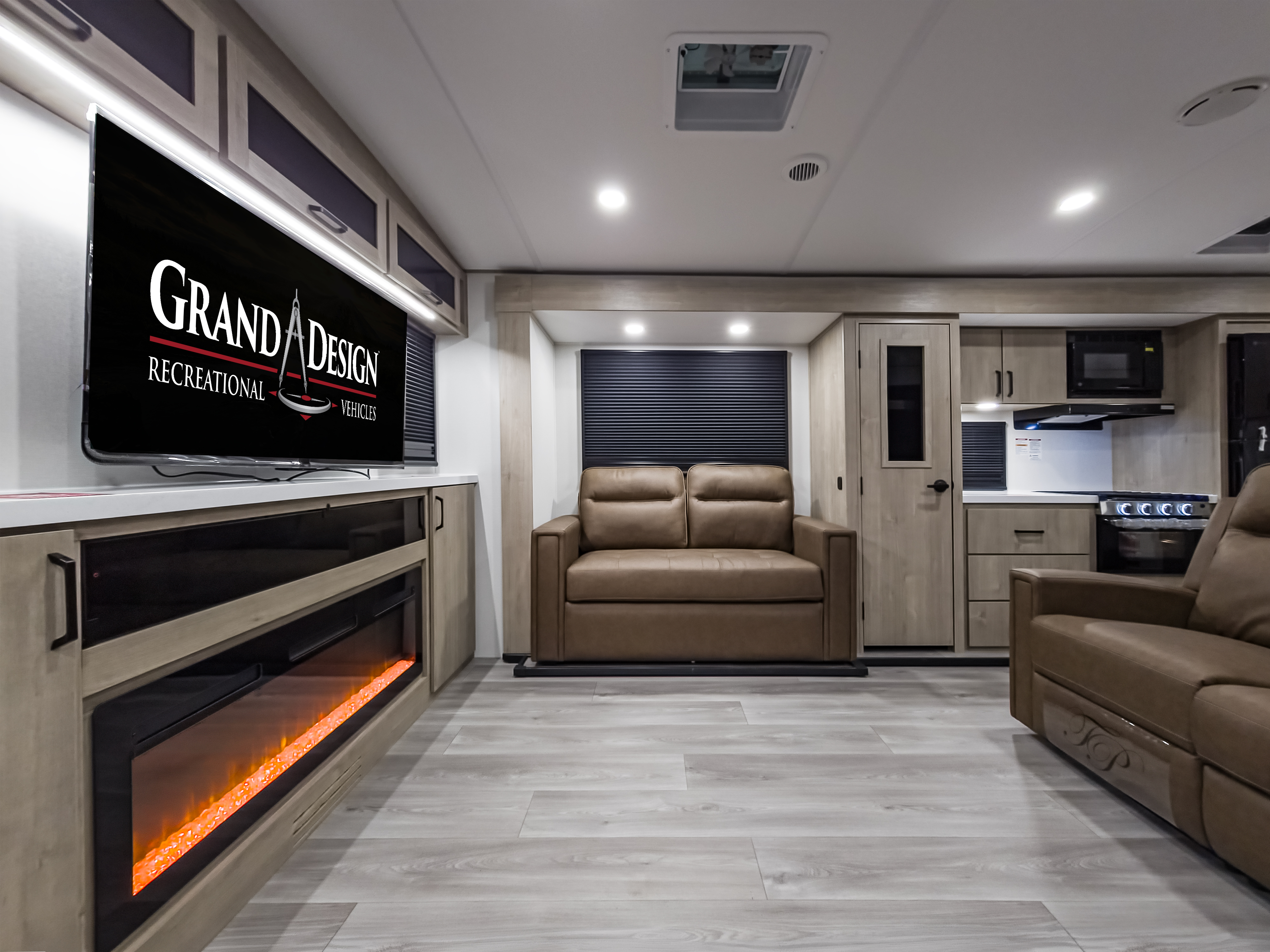

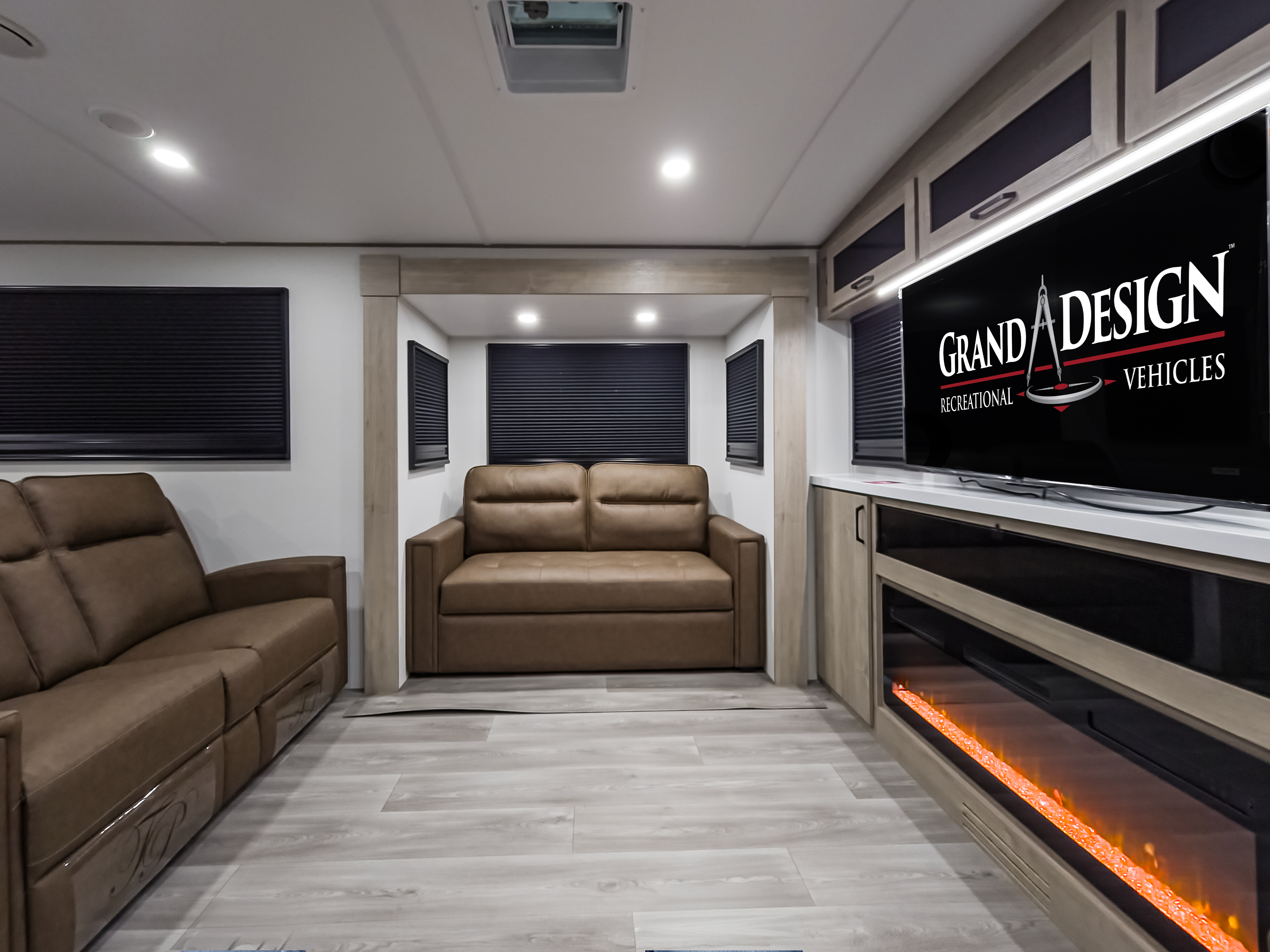

This travel trailer floorplan features a rear entertainment center, free standing dinette and front Queen Bed.

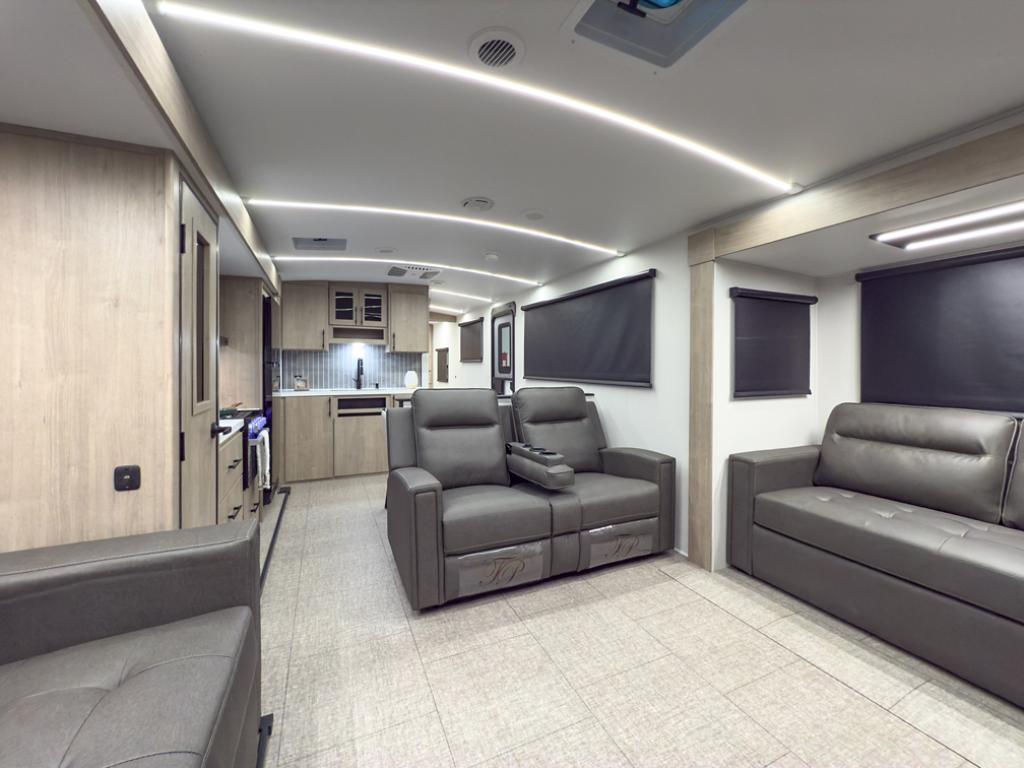

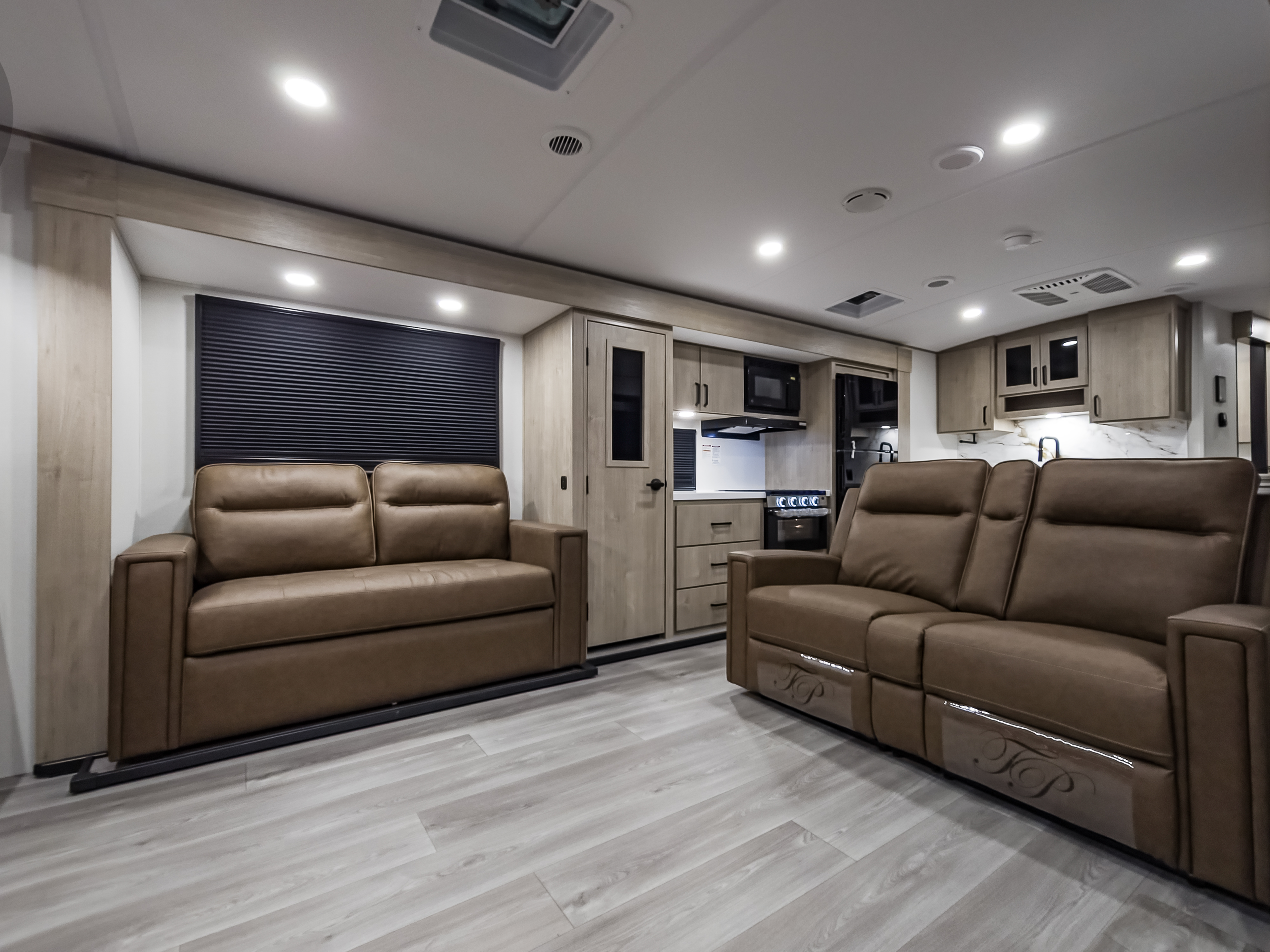

Gather around the fire – inside your RV! Double sofas, theater seating, and a free-standing dinette offer plenty of space for you and your loved ones to rest. And the sizable pantry can hold some more than just s’mores.

Hitch
791
UVW
7,778
GVWR
9,495
Length
35' 11"
Height
11' 3"
Sleeps
6
MSRP
$63,696
DOWNLOAD SPEC SHEET

OVERALL SIZE
Exterior Height 11' 3"
Exterior Height (w/opt. AC)    11' 3"
Exterior Length 35' 11"
Exterior Width 8'
Exterior Width (w/ slide out) 13'
Interior Height 81"

WEIGHTS
Hitch / Pin Weight 791
UVW 7,778
GVWR 9,495

CAPACITY
Fresh Water Capacity 52
Grey Water Capacity 90
Waste Water Capacity 45
Propane Tanks 2
LPG 40
Sleeping Capacity 6
APPLIANCES
Water Heater Tankless
Refrigerator 10 cu. ft.
Furnace 30,000 BTU
AC 15,000 BTU

RUNNING GEAR
Axles 2
Wheel Size 15 in.
Tire Size ST225/75R15LRE

CONSTRUCTION
Construction Type Aluminum Cage
Floor R-Value R-30
Wall R-Value R-7
Roof R-Value R-40
Slide Room R-Value R-7
DIMENSIONS
Standard Bed 60 X 80 Queen Bed
Standard Bunk N/A
Shower 30x36

EXTERIOR
Slides 2
Awnings 1
Awning Length 19
EXTERIOR
  • Roof Ladder
  • Power Tongue Jack
  • 80% Tint Radius Safety Glass Windows
  • 20# LP Bottles (2)
  • 28" Radius Entry Door
  • 6' Coily Hose Breakaway Cable
  • Adjustable Power Awning w/ LED Lights
  • LED Motion Sensor Entry and Pass Thru Lighting

CONSTRUCTION
  • Gel Coated Fiberglass Exterior
  • Gel Coated Fiberglass Exterior
  • One-Piece Roof Membrane with 18-Year Warranty
  • Easy Access Low Point Drain Valves
  • Insulated Slam Latch Baggage Doors
  • Magnetic Storage and Entry Door Latches
  • Laminated Aluminum Framed Rear Wall (R-7)
  • Laminated Aluminum Framed Side Walls (R-7)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
  • Laminated Aluminum Framed Main Floor (R-30)
  • 5" Radius Wood Framed Roof (R-40)
  • Laminated Aluminum Framed Roof & End Walls in Slide Rooms & Slide Floor (R-23)
  • Heated and Enclosed Underbelly with Suspended Tanks
  • Double Insulated Roof and Front Cap
  • Heated and Enclosed Dump Valves
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure

RUNNING GEAR
  • Tire Linc TPMS Prep
  • Tire Linc TPMS Prep

FRAME & CHASSIS
  • Drop Frame Chassis
INTERIOR
  • Solid Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Face Frames
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Windows
  • Upgraded Residential Furniture
  • Radius Ceiling with 81" Tall Headroom

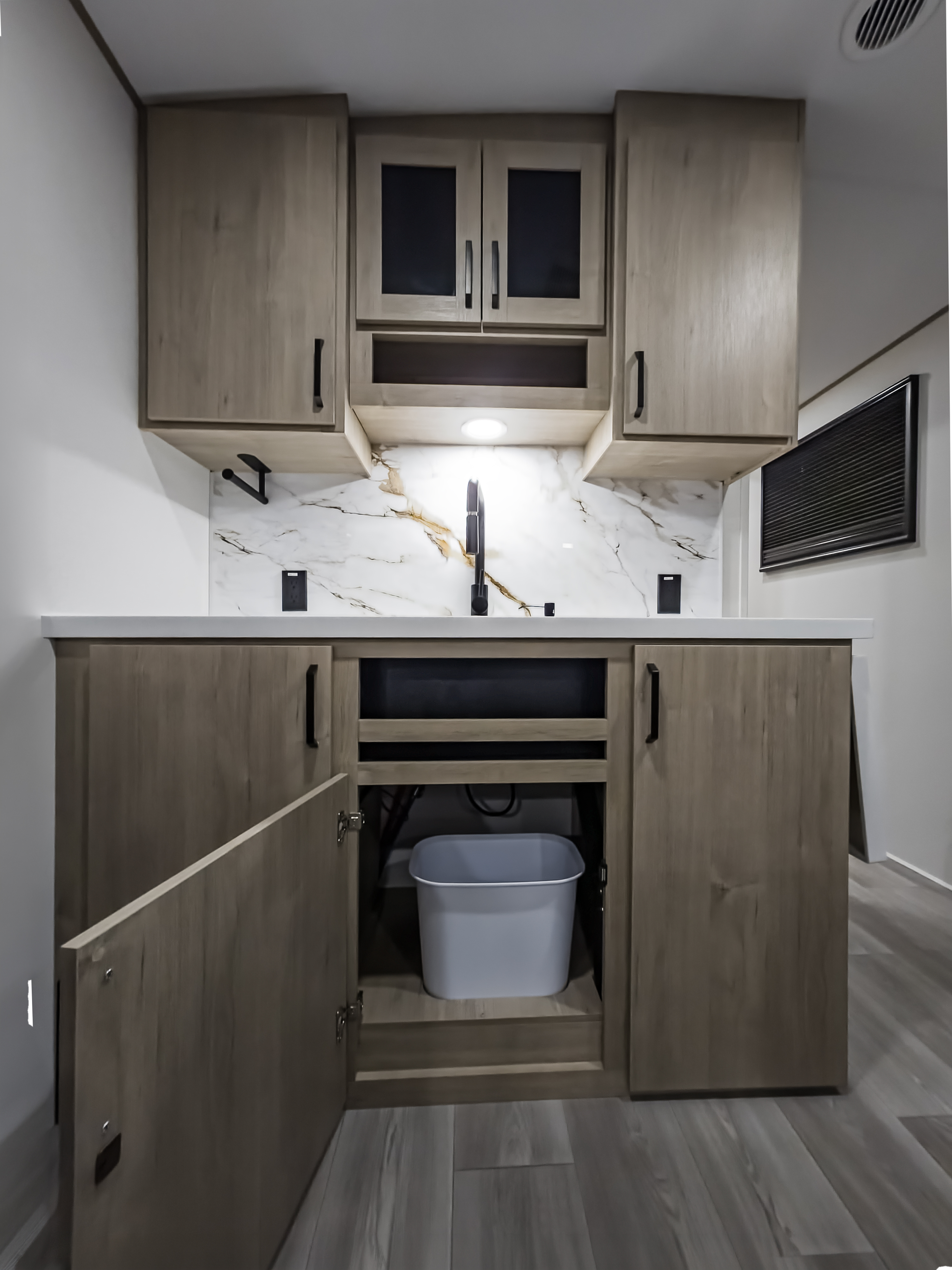

KITCHEN
  • Sink Cover
  • Stainless Steel Sink
  • Residential Countertops
  • Reversible Dinette Cushions

ELECTRICAL
  • Battery Kill Switch (Pass Thru)
  • 165W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 25 Amp Charge Controller
  • LED Interior Lighting
  • 30 AMP Service
  • Detachable Power Cord
  • Compass Connect

HVAC
  • Ducted Main AC
  • High Capacity Furnace
  • Residential Heating System Throughout (Ductless)
PLUMBING
  • Black Tank Flush
  • High-Capacity Water Pump
  • Extra Large 2” Fresh Water Drain Valve
  • Oversized Tank Capacities
  • On Demand Tankless Water Heater

BEDROOM
  • Master Suite with 60" x 80" Queen Bed
  • Solid Bedroom Door (Master Suite)
  • Oversized Underbed Storage w/ Sliding Cargo Tray
  • Residential Bedspread w/ Headboard
  • Built-in Wardrobe Cubby Storage w/USB-C Charging Station & 110V Outlet
  • Sliding Bed Storage Tray

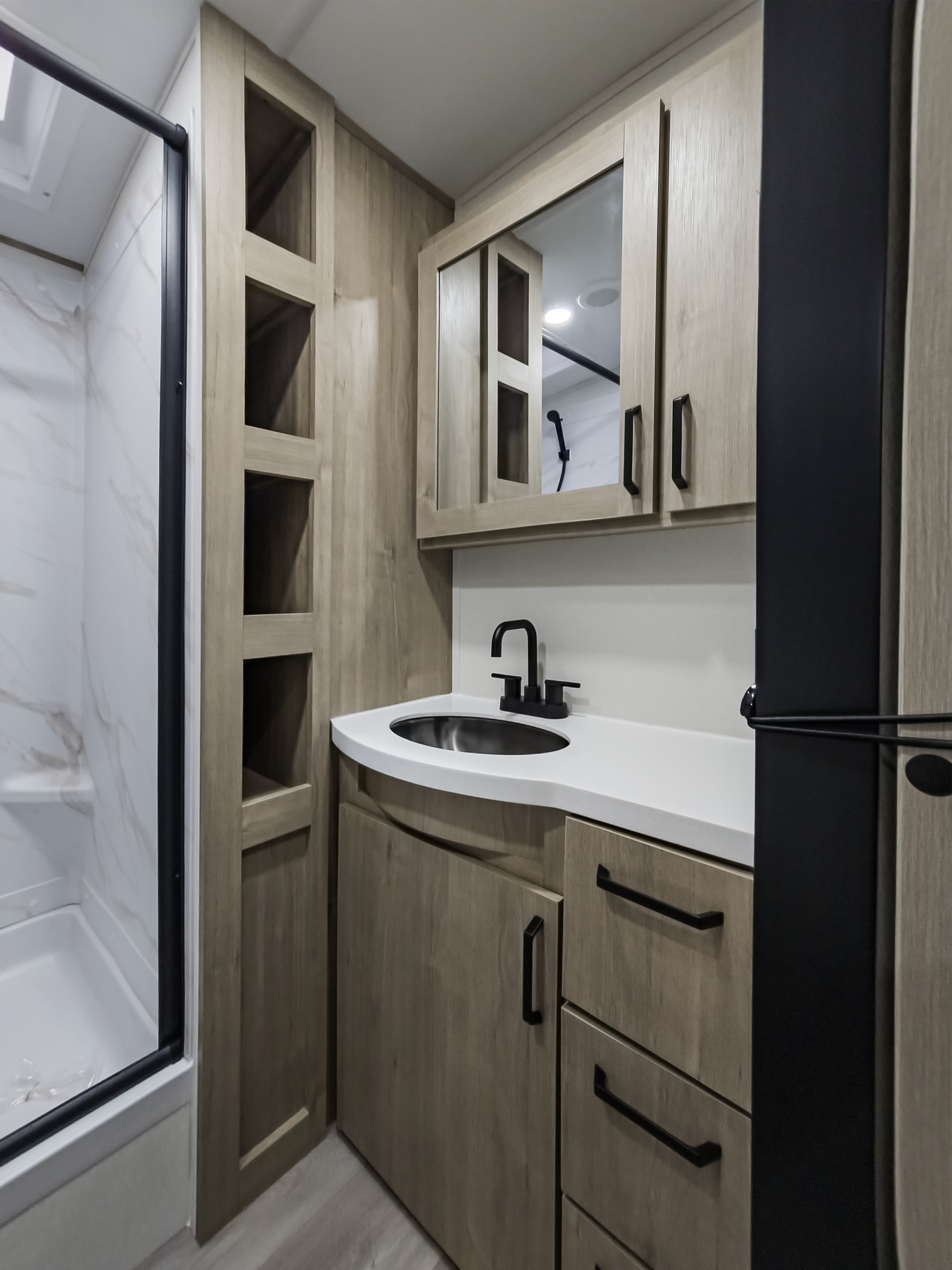

BATHROOM
  • 30" x 36" Residential Walk-In Shower with Skylight
  • Power Vent Fan
  • Medicine Cabinet with Mirror

APPLIANCE
  • Double Door Refrigerator
  • 3-Burner Range with Oven
  • Microwave
  • 12V 10 Cu. Ft. Refrigerator

ELECTRONICS
  • Backup Camera Prep
  • Exterior Speakers
  • TV and Cable Prep
  • AM/FM Bluetooth Stereo
  • Hi Definition LED TV
  • Exterior Cable Hookup
Peace of Mind Package
  • Front Pass Thru Storage
  • Solid Step Entry Steps
  • Deep-Seated Stainless Steel Sink
  • Residential Pull-Down Spray Faucet
  • Full Walk-on Roof
  • Residential Cabinetry
  • Black Tank Flush
  • Aluminum Wheels
  • Spare Tire and Carrier
  • Universal Docking Station
  • Nitrogen Filled Radial Tires
  • Front Rock Guard
  • Radius Interior Ceiling w/ 81" of Headroom
  • Fiberglass Front Cap
  • Premium Window Treatments
  • Metal Slam Latch Front Pass Thru Cargo Doors
  • 6' Coiled Break Away Cable
  • Quick Recovery Water Heater
Ultimate Power Package
  • Adjustable Power Awning w/ LED Lights
  • LED Interior Lighting
  • HD LED Television
  • Ducted Main Air Conditioning
  • Power Tongue Jack
  • Exterior Cable/Satellite Hook-Up
  • Detachable Power Cord
  • Motion Sensor Entry and Pass Thru LED Lighting
  • AM/ FM/ CD/ DVD/ Bluetooth Stereo
  • Compass Connect Smartphone Unit Control
  • Tire Linc Tire Pressure Monitoring Prep
Arctic 4-Season Protection Package
  • 35K BTU High Capacity Furnace
  • Heated & Enclosed Underbelly w/ Suspended Tanks
  • Double Insulated Roof and Front Cap (R-40)
  • Heated and Enclosed Dump Valves
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure
  • Residential Style (Ductless) Heating System Throughout
