Imagine | 2470BH

Build and Price your Grand Design RV GDRV

$0

Country Code US CA

Contact Method

Yes, I would like to receive text messages from Grand Design. **Standard message and data rates may apply. You may opt out at any time.*

*MSRP shown in USD. Pricing does not include freight, tax, title, license or dealer prep charges. Because of our commitment to continuous product improvement, Grand Design Recreational Vehicles reserves the right to change prices, components, standards, options, specifications, and materials without notice and at any time. Be sure to review current product details with your local dealer before purchasing.

Features and Packages
included in the starting price:

Hitch
659

UVW
6,406

GVWR
7,850

Length
29'

Height
11' 2"

Sleeps
6

MSRP
Coming Soon

DOWNLOAD SPEC SHEET

Specifications
Features
Packages

OVERALL SIZE
Exterior Height	11' 2"
Exterior Height (w/opt. AC)
Exterior Length	29'
Exterior Width	8'
Exterior Width (w/ slide out)	11'
Interior Height	81

WEIGHTS
Hitch / Pin Weight	659
UVW	6,406
GVWR	7,850

CAPACITY
Fresh Water Capacity	45
Gray Water Capacity	82
Waste Water Capacity	45
Propane Tanks	2
LPG	40
Sleeping Capacity	6

APPLIANCES
Water Heater	Tankless
Refrigerator	10 cu. ft.
Furnace	30,000 BTU
AC	15,000 BTU

RUNNING GEAR
Axles	2
Wheel Size	15 in.
Tire Size	ST225/75R15LRE

CONSTRUCTION
Construction Type	Aluminum Cage
Floor R-Value	R-30
Wall R-Value	R-7
Roof R-Value	R-40
Slide Room R-Value	R-7

DIMENSIONS
Standard Bed	60 X 80 Queen Bed
Standard Bunk	(2) 47x76" Bunks
Shower	30 x 36"

EXTERIOR
Slides	1
Awnings	1
Awning Length	21'

EXTERIOR
Roof Ladder Power Tongue Jack 80% Tint Radius Safety Glass Windows 20# LP Bottles (2) w/ Level Gauges 28" Radius Entry Door 6' Coily Hose Breakaway Cable Adjustable Power Awning w/ LED Lights Motion Sensor Entry LED Lighting Spare Tire & Carrier Tuff-Ply Pass Thru Flooring Sewer Hose Carrier

CONSTRUCTION
Gel Coated Fiberglass Exterior One-Piece Roof Membrane with Limited Lifetime Warranty Easy Access Low Point Drain Valves Insulated Slam Latch Baggage Doors Magnetic Storage and Entry Door Latches Laminated Aluminum Framed Rear Wall (R-7) Laminated Aluminum Framed Side Walls (R-7) Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7) Laminated Aluminum Framed Main Floor (R-30) 5" Radius Wood Framed Roof (R-40) Laminated Aluminum Framed Roof & End Walls in Slide Rooms & Slide Floor (R-23) Heated and Enclosed Underbelly with Suspended Tanks Double Insulated Roof and Front Cap Heated and Enclosed Dump Valves Designated Heat Duct to Subfloor High Density Roof Insulation with Attic Vent Moisture Barrier Floor Enclosure

RUNNING GEAR
Tire Linc TPMS Prep ABS w/ Sway Control MorRyde CRE-3000

FRAME & CHASSIS
Accessory Hitch Receiver

INTERIOR
Solid Drawer Fronts Solid Core Cabinet Stiles Pre-Drilled and Screwed Face Frames Ball Bearing Full Extension Drawer Glides Large Panoramic Windows Upgraded Residential Furniture Radius Ceiling with 81" Tall Headroom Wireless Pop-up Charger w/ 2 USB Outlets

KITCHEN
Sink Cover Stainless Steel Sink Residential Countertops

ELECTRICAL
Battery Kill Switch (Pass Thru) 200W Roof Mounted Solar Panel Roof Mounted Quick Connect Plugs 30 AMP Charge Controller LED Interior Lighting Detachable Power Cord Compass Connect 50 AMP Service

HVAC
Ducted Main AC High Capacity Furnace Residential Heating System Throughout (Ductless)

PLUMBING
Black Tank Flush High-Capacity Water Pump Extra Large 2” Fresh Water Drain Valve Oversized Tank Capacities On Demand Tankless Water Heater

BEDROOM
Master Suite with 60" x 80" Queen Bed Solid Bedroom Door (Master Suite) Oversized Underbed Storage w/ Sliding Cargo Tray Residential Bedspread w/ Headboard Built-in Wardrobe Cubby Storage w/USB-C Charging Station & 110V Outlet Sliding Bed Storage Tray

BATHROOM
30" x 36" Residential Walk-In Shower with Skylight Power Vent Fan Medicine Cabinet with Mirror

APPLIANCE
3-Burner Range with Oven Microwave 12V 10 Cu. Ft. Refrigerator

ELECTRONICS
Backup Camera Prep TV and Cable Prep Hi Definition LED TV Exterior Cable Hookup

Peace of Mind Package

Deep-Seated Stainless Steel Sink

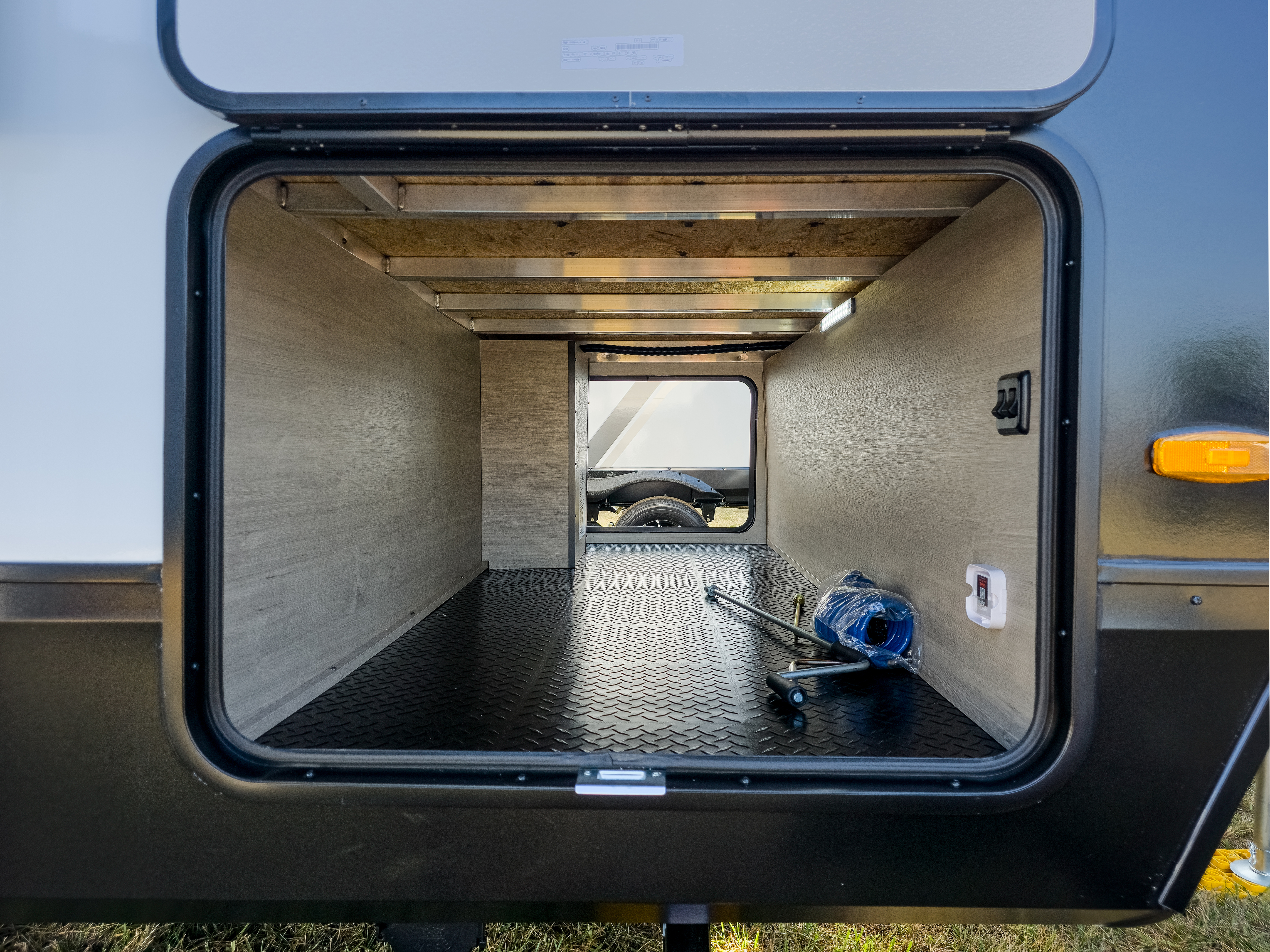

Drop Frame Front Pass Thru Storage
Residential Pull-Down Sprayer Faucet
On-Demand Tankless Water Heater
Solid-Step Entry Steps
Walk on Roof
Residential Cabinetry
Universal Docking Station
Aluminum Rims
Black Tank Flush
Spare Tire and Carrier
Front Rock Guard
Radius Interior Ceiling
Fiberglass Front Cap
Premium Window Treatments
Metal Slam Latch Front Cargo Doors
6' Coiled Break Away Cable
2" Accessory Hitch
Sewer Hose Carrier
Tuff-Ply Pass Through Flooring
Dual LP Tank Monitors

Ultimate Power Package
Adjustable Power Awning w/ LED Lights LED Interior Lighting Motion Sensor Entry LED Lighting 50 AMP Service Hi Definition LED TV Detachable Power Cord Ducted Main AC Power Tongue Jack Exterior Cable Hookup Compass Connect Tire Linc TPMS Prep Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches Wireless Pop-Up Charger w/Dual USB Ports

Four Season Protection Package
High Capacity Furnace Heated and Enclosed Underbelly with Suspended Tanks Double Insulated Roof and Front Cap Heated and Enclosed Dump Valves Designated Heat Duct to Subfloor High Density Roof Insulation with Attic Vent Moisture Barrier Floor Enclosure Residential Heating System Throughout (Ductless)

Solar Package
180W Roof Mounted Solar Panel Roof Mounted Quick Connect Plugs 40 AMP Charge Controller 12V 10 CU. FT. Refrigerator
