This travel trailer floorplan features a rear kitchen and Desk with front Queen Bed.

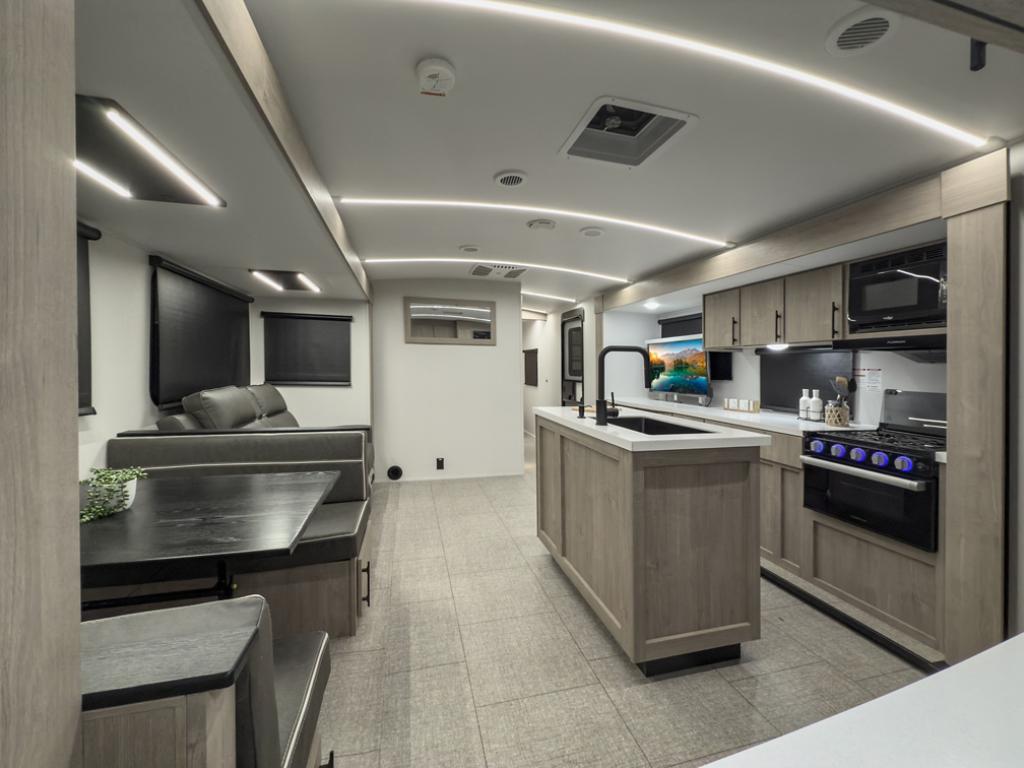

Bake up a storm in this lightweight trailer where the kitchen is the star. With a huge living area, fireplace, and kitchen island, you can entertain - or get cozy, rain or shine.

Hitch
690
UVW
6,845
GVWR
8,495
Length
32' 3"
Height
11' 2"
Sleeps
6
MSRP
$58,523
DOWNLOAD SPEC SHEET

OVERALL SIZE
Exterior Height 11' 2"
Exterior Height (w/opt. AC)    11' 2"
Exterior Length 32' 3"
Exterior Width 8'
Exterior Width (w/ slide out) 13'
Interior Height 81"

WEIGHTS
Hitch / Pin Weight 690
UVW 6,845
GVWR 8,495

CAPACITY
Fresh Water Capacity 52
Grey Water Capacity 82
Waste Water Capacity 45
Propane Tanks 2
LPG 40
Sleeping Capacity 6
APPLIANCES
Water Heater Tankless
Refrigerator 10 cu. ft.
Furnace 30,000 BTU
AC 15,000 BTU

RUNNING GEAR
Axles 2
Wheel Size 15 in.
Tire Size ST225/75R15LRE

CONSTRUCTION
Construction Type Aluminum Cage
Floor R-Value R-30
Wall R-Value R-7
Roof R-Value R-40
Slide Room R-Value R-7
DIMENSIONS
Standard Bed 60 X 80 Queen Bed
Standard Bunk N/A
Shower 30x36

EXTERIOR
Slides 2
Awnings 1
Awning Length 21
EXTERIOR

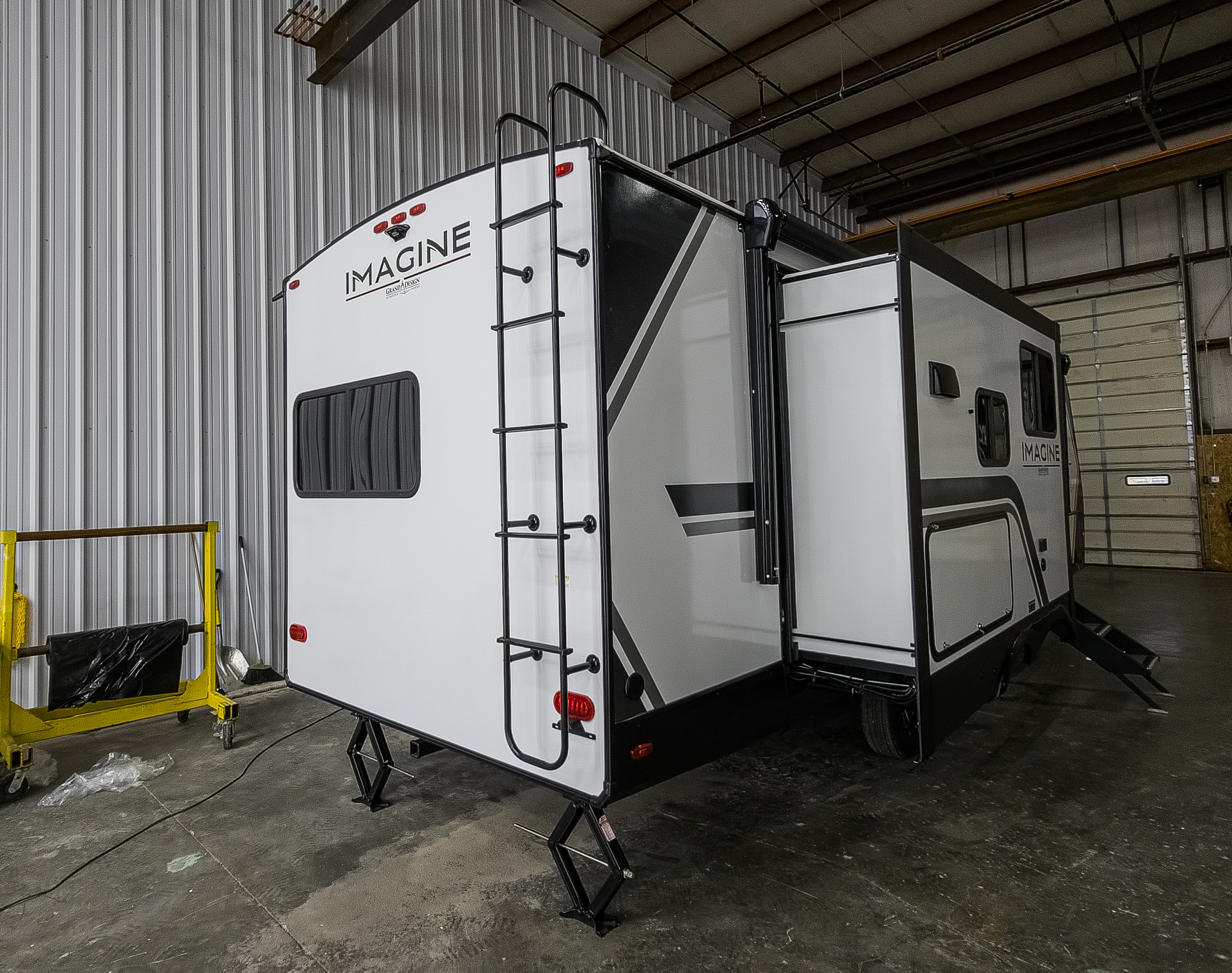

  • Roof Ladder
  • Power Tongue Jack
  • 80% Tint Radius Safety Glass Windows
  • 20# LP Bottles (2)
  • 28" Radius Entry Door
  • 6' Coily Hose Breakaway Cable
  • Adjustable Power Awning w/ LED Lights

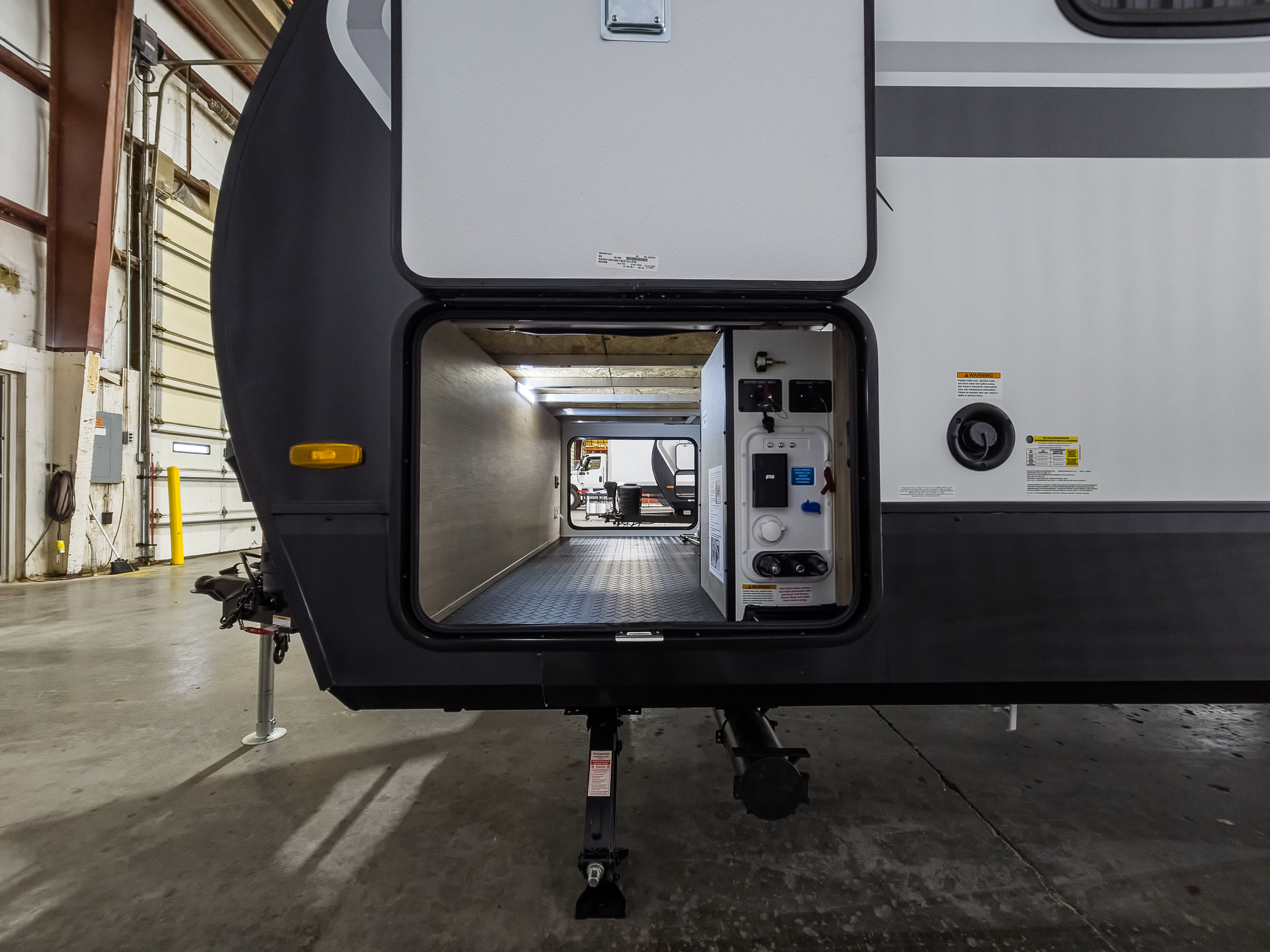

  • LED Motion Sensor Entry and Pass Thru Lighting

CONSTRUCTION
  • Gel Coated Fiberglass Exterior
  • Gel Coated Fiberglass Exterior
  • One-Piece Roof Membrane with 18-Year Warranty
  • Easy Access Low Point Drain Valves
  • Insulated Slam Latch Baggage Doors
  • Magnetic Storage and Entry Door Latches
  • Laminated Aluminum Framed Rear Wall (R-7)
  • Laminated Aluminum Framed Side Walls (R-7)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
  • Laminated Aluminum Framed Main Floor (R-30)
  • 5" Radius Wood Framed Roof (R-40)
  • Laminated Aluminum Framed Roof & End Walls in Slide Rooms & Slide Floor (R-23)
  • Heated and Enclosed Underbelly with Suspended Tanks
  • Double Insulated Roof and Front Cap
  • Heated and Enclosed Dump Valves
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure

RUNNING GEAR
  • Tire Linc TPMS Prep
  • Tire Linc TPMS Prep

FRAME & CHASSIS
  • Drop Frame Chassis
INTERIOR
  • Solid Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Face Frames
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Windows
  • Upgraded Residential Furniture
  • Radius Ceiling with 81" Tall Headroom

KITCHEN
  • Sink Cover
  • Stainless Steel Sink
  • Residential Countertops
  • Reversible Dinette Cushions

ELECTRICAL
  • Battery Kill Switch (Pass Thru)
  • 165W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 25 Amp Charge Controller
  • LED Interior Lighting
  • 30 AMP Service
  • Detachable Power Cord
  • Compass Connect

HVAC
  • Ducted Main AC
  • High Capacity Furnace
  • Residential Heating System Throughout (Ductless)
PLUMBING
  • Black Tank Flush
  • High-Capacity Water Pump
  • Extra Large 2” Fresh Water Drain Valve
  • Oversized Tank Capacities
  • On Demand Tankless Water Heater

BEDROOM
  • Master Suite with 60" x 80" Queen Bed
  • Solid Bedroom Door (Master Suite)
  • Oversized Underbed Storage w/ Sliding Cargo Tray
  • Residential Bedspread w/ Headboard
  • Built-in Wardrobe Cubby Storage w/USB-C Charging Station & 110V Outlet
  • Sliding Bed Storage Tray

BATHROOM
  • 30" x 36" Residential Walk-In Shower with Skylight
  • Power Vent Fan
  • Medicine Cabinet with Mirror

APPLIANCE
  • Double Door Refrigerator
  • 3-Burner Range with Oven
  • Microwave
  • 12V 10 Cu. Ft. Refrigerator

ELECTRONICS
  • Backup Camera Prep
  • Exterior Speakers
  • TV and Cable Prep

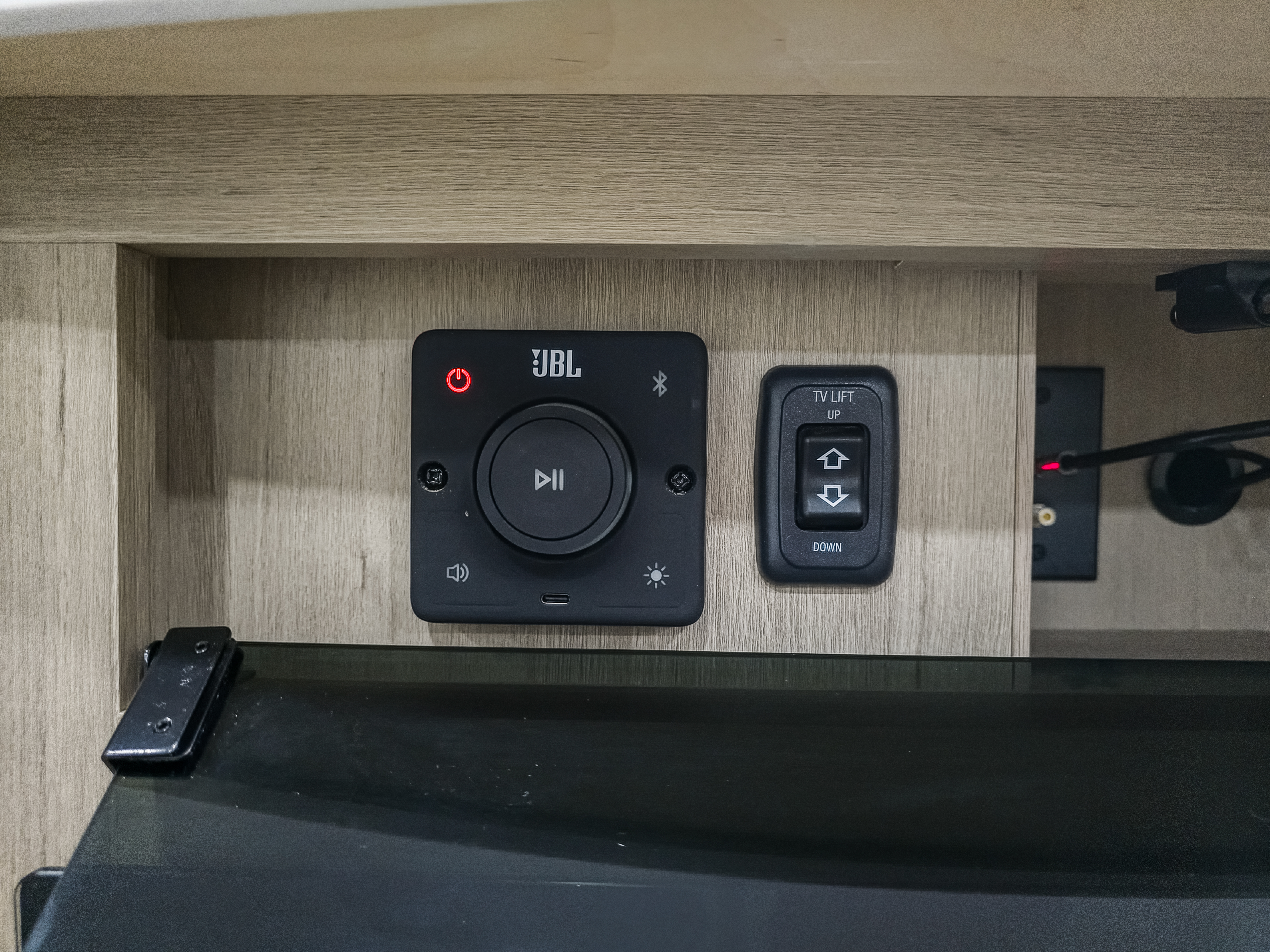

  • AM/FM Bluetooth Stereo
  • Hi Definition LED TV
  • Exterior Cable Hookup
Peace of Mind Package
  • Aluminum Entry Steps
  • Universal Docking Station
  • ON DEMAND Tankless Water Heater
  • Black Tank Flush
  • Spare Tire and Carrier
  • Nitrogen Filled Radial Tires
  • Front Rock Guard
  • Aluminum Rims
  • Premium Window Treatments
  • Residential Cabinetry
  • 6" Break Away Cable
  • Dedicated Sewer Hose Carrier
  • Accessory Hitch Reciever

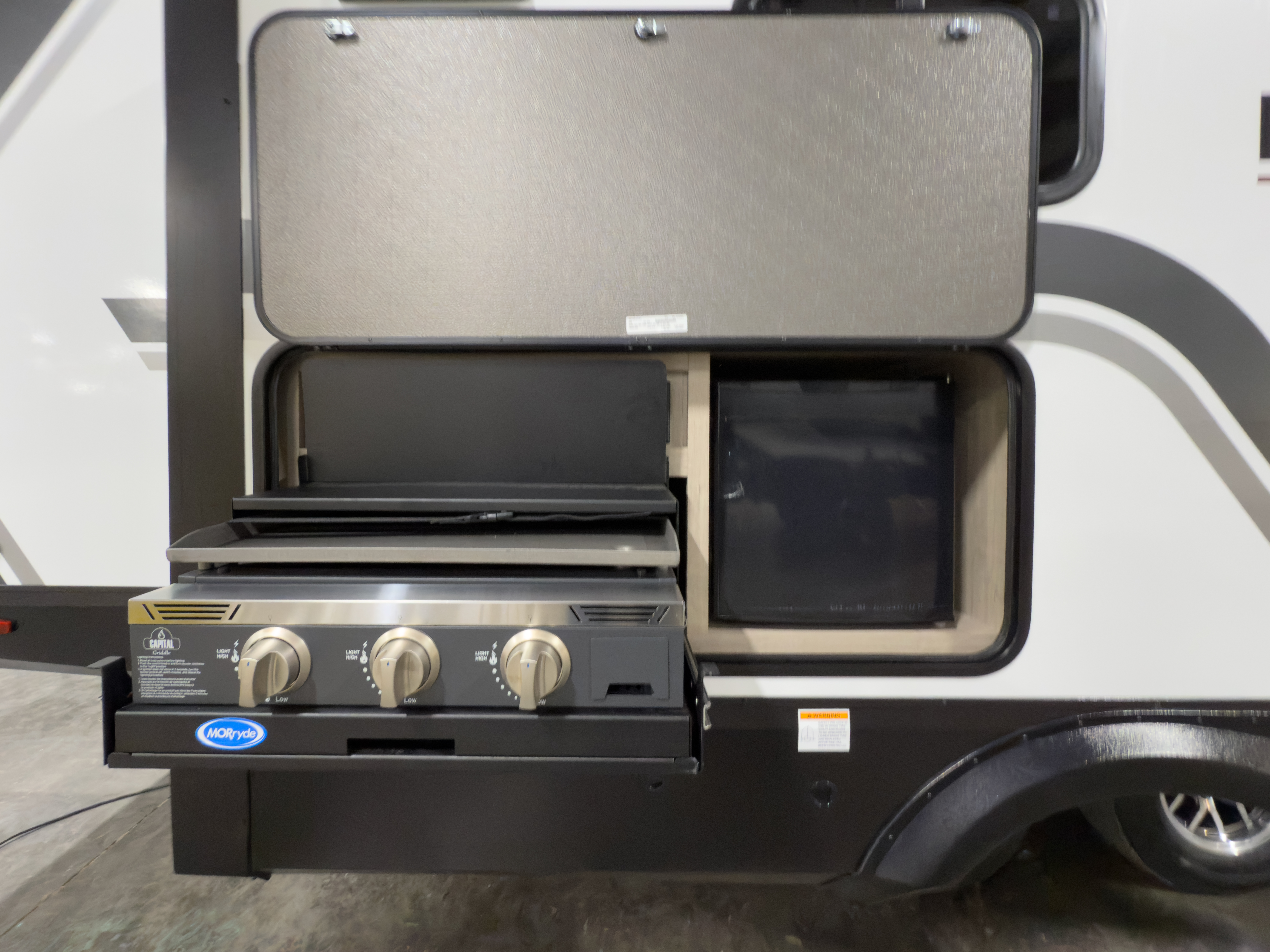

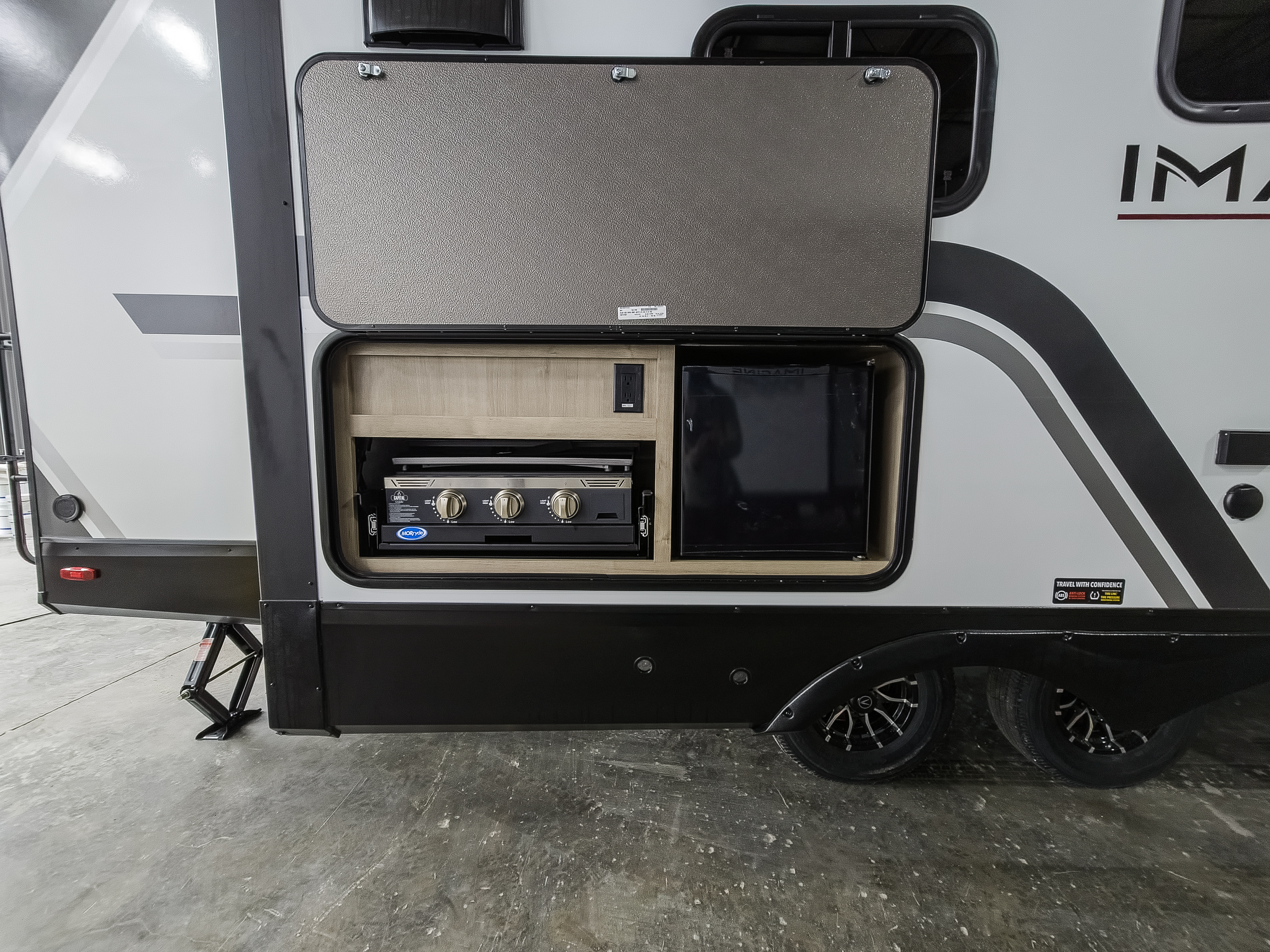

  • Exterior Cooking Griddle w/ Metal Pullout Drawer
  • 6' Coiled Break Away Cable
  • Oversized Holding Tanks
  • Conventional Microwave
Ultimate Power Package
  • Electric Awning with LED Light
  • LED Interior Lighting
  • Motion Sensor Entry and Pass Thru Lighting (LED)
  • Bluetooth Stereo
  • High Definition LED Television
  • Detachable Marine Grade Power Cord
  • Ducted AC System
  • 30 AMP Service
  • Power Tongue Jack
  • Compass Connect
  • Tire Linc TPMS Prep
  • Exterior Cable Hookup
Four Season Protection Package
  • 25k BTU High Capacity Furnace
  • Heated and Enclosed Underbelly with Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure
  • Residential (Ductless) Heating System Throughout
  • Double Insulated Roof and Front Cap (R-40)
  • Heated and Enclosed Dump Valves
