This travel trailer floorplan features a rear bunk beds with mid kitchen and front Queen Bed.

Good night, sleep tight! Everyone rests well in this spacious bunkhouse that sleeps up to 10 people – all with plenty of room for storage and amenities.

Hitch
720
UVW
7,087
GVWR
8,995
Length
33' 11"
Height
11' 2"
Sleeps
10
MSRP
$57,192
DOWNLOAD SPEC SHEET

OVERALL SIZE
Exterior Height 11' 2"
Exterior Height (w/opt. AC)    11' 2"
Exterior Length 33' 11"
Exterior Width 8'
Exterior Width (w/ slide out) 11'
Interior Height 81"

WEIGHTS
Hitch / Pin Weight 720
UVW 7,087
GVWR 8,995

CAPACITY
Fresh Water Capacity 52
Grey Water Capacity 90
Waste Water Capacity 45
Propane Tanks 2
LPG 40
Sleeping Capacity 10
APPLIANCES
Water Heater Tankless
Refrigerator 10 cu. ft.
Furnace 30,000 BTU
AC 15,000 BTU

RUNNING GEAR
Axles 2
Wheel Size 15 in.
Tire Size ST225/75R15LRE

CONSTRUCTION
Construction Type Aluminum Cage
Floor R-Value R-30
Wall R-Value R-7
Roof R-Value R-40
Slide Room R-Value R-7
DIMENSIONS
Standard Bed 60 X 80 Queen Bed
Standard Bunk 54 X 74
Shower 30 X 36

EXTERIOR
Slides 1
Awnings 1
Awning Length 21
EXTERIOR
  • Roof Ladder
  • Power Tongue Jack
  • 80% Tint Radius Safety Glass Windows
  • 20# LP Bottles (2)
  • 28" Radius Entry Door
  • 6' Coily Hose Breakaway Cable
  • Adjustable Power Awning w/ LED Lights
  • LED Motion Sensor Entry and Pass Thru Lighting

CONSTRUCTION
  • Gel Coated Fiberglass Exterior
  • Gel Coated Fiberglass Exterior
  • One-Piece Roof Membrane with 18-Year Warranty
  • Easy Access Low Point Drain Valves
  • Insulated Slam Latch Baggage Doors
  • Magnetic Storage and Entry Door Latches
  • Laminated Aluminum Framed Rear Wall (R-7)
  • Laminated Aluminum Framed Side Walls (R-7)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
  • Laminated Aluminum Framed Main Floor (R-30)
  • 5" Radius Wood Framed Roof (R-40)
  • Laminated Aluminum Framed Roof & End Walls in Slide Rooms & Slide Floor (R-23)
  • Heated and Enclosed Underbelly with Suspended Tanks
  • Double Insulated Roof and Front Cap
  • Heated and Enclosed Dump Valves
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure

RUNNING GEAR
  • Tire Linc TPMS Prep
  • Tire Linc TPMS Prep

FRAME & CHASSIS
  • Drop Frame Chassis
INTERIOR
  • Solid Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Face Frames
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Windows
  • Upgraded Residential Furniture
  • Radius Ceiling with 81" Tall Headroom

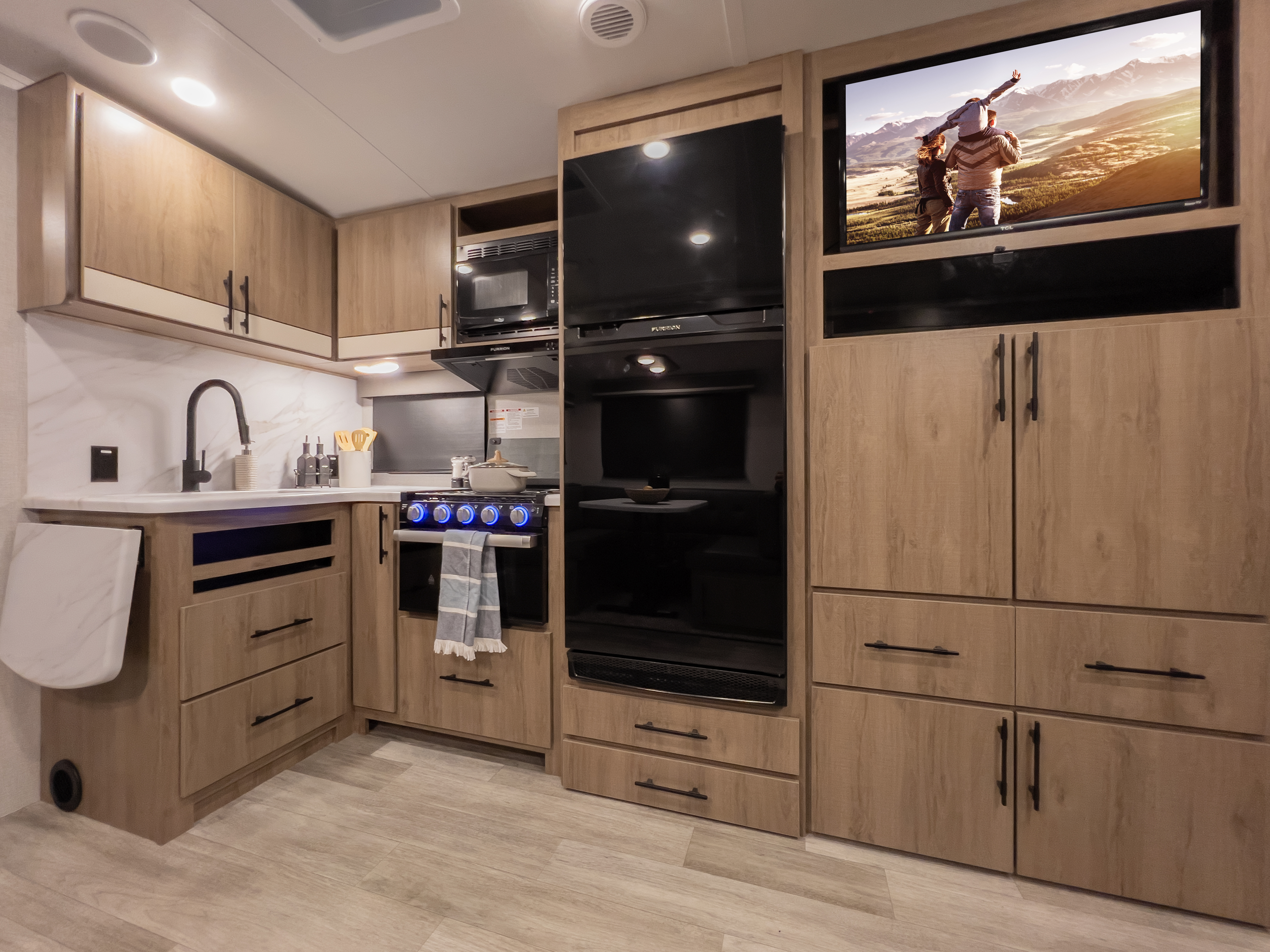

KITCHEN
  • Sink Cover
  • Stainless Steel Sink
  • Residential Countertops
  • Reversible Dinette Cushions

ELECTRICAL
  • Battery Kill Switch (Pass Thru)
  • 165W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 25 Amp Charge Controller
  • LED Interior Lighting
  • 30 AMP Service
  • Detachable Power Cord
  • Compass Connect

HVAC
  • Ducted Main AC
  • High Capacity Furnace
  • Residential Heating System Throughout (Ductless)
PLUMBING
  • Black Tank Flush
  • High-Capacity Water Pump
  • Extra Large 2” Fresh Water Drain Valve
  • Oversized Tank Capacities
  • On Demand Tankless Water Heater

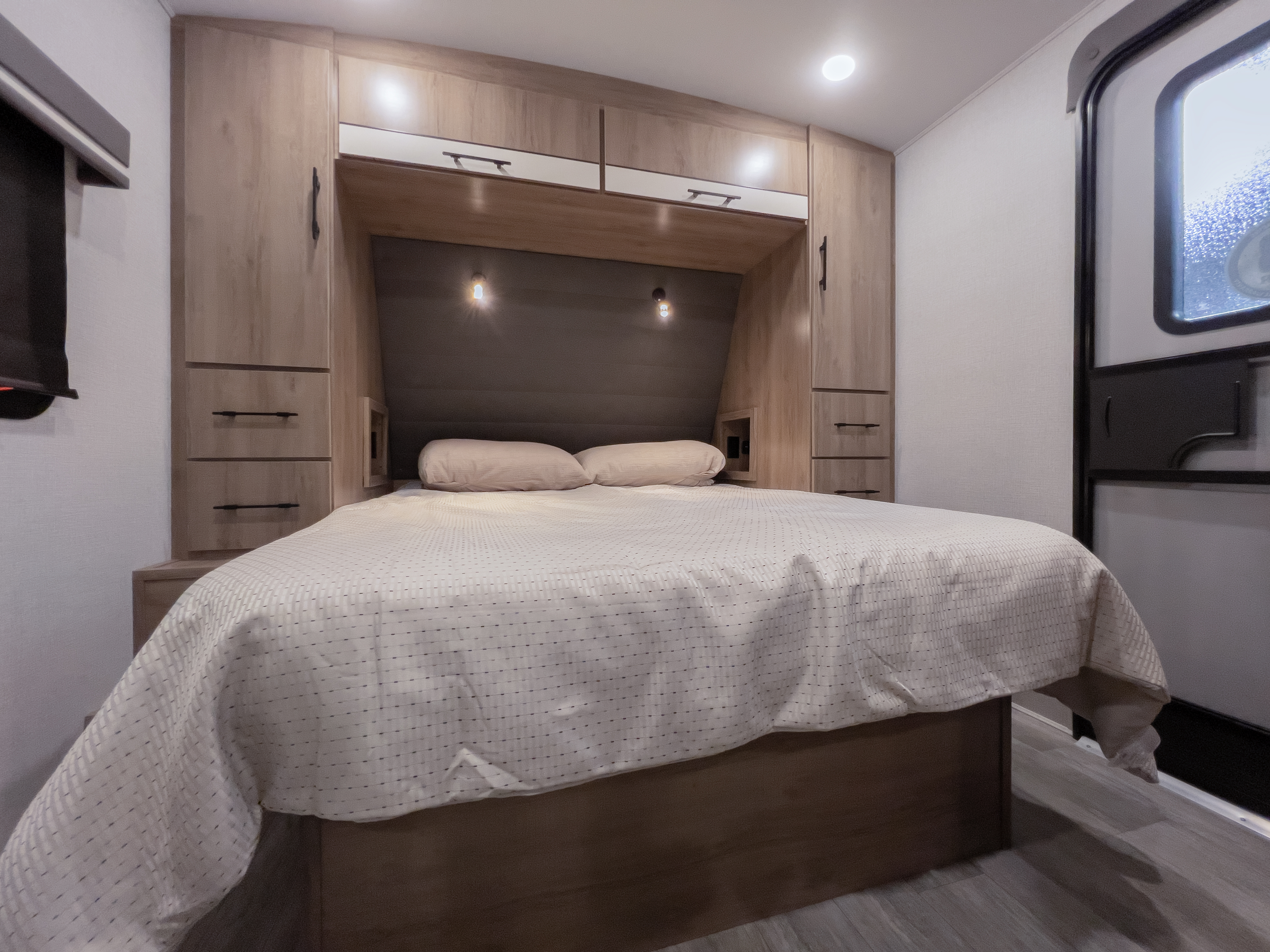

BEDROOM
  • Master Suite with 60" x 80" Queen Bed
  • Solid Bedroom Door (Master Suite)
  • Oversized Underbed Storage w/ Sliding Cargo Tray
  • Residential Bedspread w/ Headboard
  • Built-in Wardrobe Cubby Storage w/USB-C Charging Station & 110V Outlet
  • Sliding Bed Storage Tray

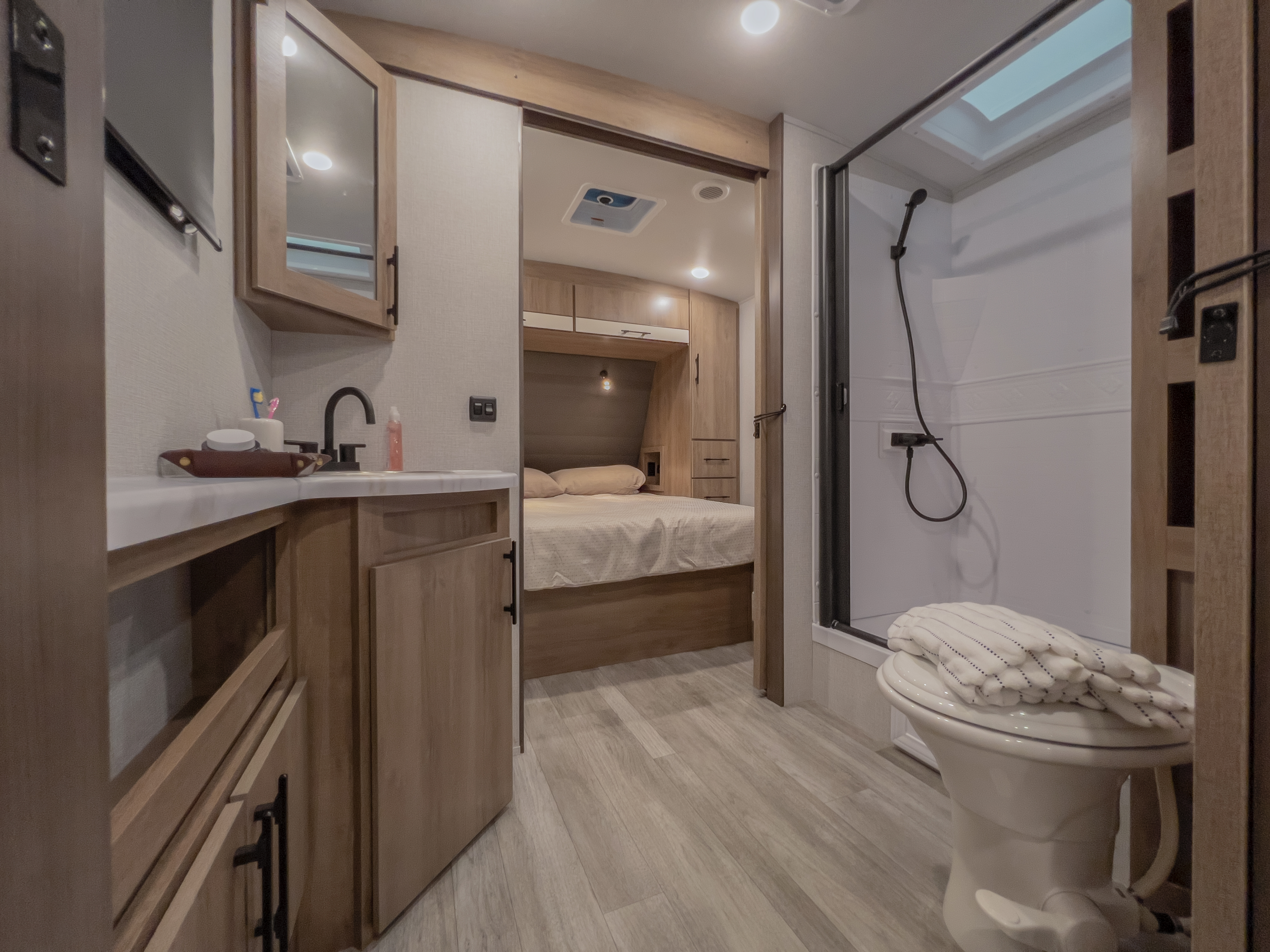

BATHROOM
  • 30" x 36" Residential Walk-In Shower with Skylight
  • Power Vent Fan
  • Medicine Cabinet with Mirror

APPLIANCE
  • Double Door Refrigerator
  • 3-Burner Range with Oven
  • Microwave
  • 12V 10 Cu. Ft. Refrigerator

ELECTRONICS
  • Backup Camera Prep
  • Exterior Speakers
  • TV and Cable Prep
  • AM/FM Bluetooth Stereo
  • Hi Definition LED TV
  • Exterior Cable Hookup
Peace of Mind Package
  • Front Pass Thru Storage
  • Solid Step Entry Steps
  • Deep-Seated Stainless Steel Sink
  • Residential Pull-Down Spray Faucet
  • Full Walk-on Roof
  • Residential Cabinetry
  • Black Tank Flush
  • Aluminum Wheels
  • Spare Tire and Carrier
  • Universal Docking Station
  • Nitrogen Filled Radial Tires
  • Front Rock Guard
  • Radius Interior Ceiling w/ 81" of Headroom
  • Fiberglass Front Cap
  • Premium Window Treatments
  • Metal Slam Latch Front Pass Thru Cargo Doors
  • 6' Coiled Break Away Cable
  • Quick Recovery Water Heater
Ultimate Power Package
  • Adjustable Power Awning w/ LED Lights
  • LED Interior Lighting
  • HD LED Television
  • Ducted Main Air Conditioning
  • Power Tongue Jack
  • Exterior Cable/Satellite Hook-Up
  • Detachable Power Cord
  • Motion Sensor Entry and Pass Thru LED Lighting
  • AM/ FM/ CD/ DVD/ Bluetooth Stereo
  • Compass Connect Smartphone Unit Control
  • Tire Linc Tire Pressure Monitoring Prep
Arctic 4-Season Protection Package
  • 35K BTU High Capacity Furnace
  • Heated & Enclosed Underbelly w/ Suspended Tanks
  • Double Insulated Roof and Front Cap (R-40)
  • Heated and Enclosed Dump Valves
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure
  • Residential Style (Ductless) Heating System Throughout
