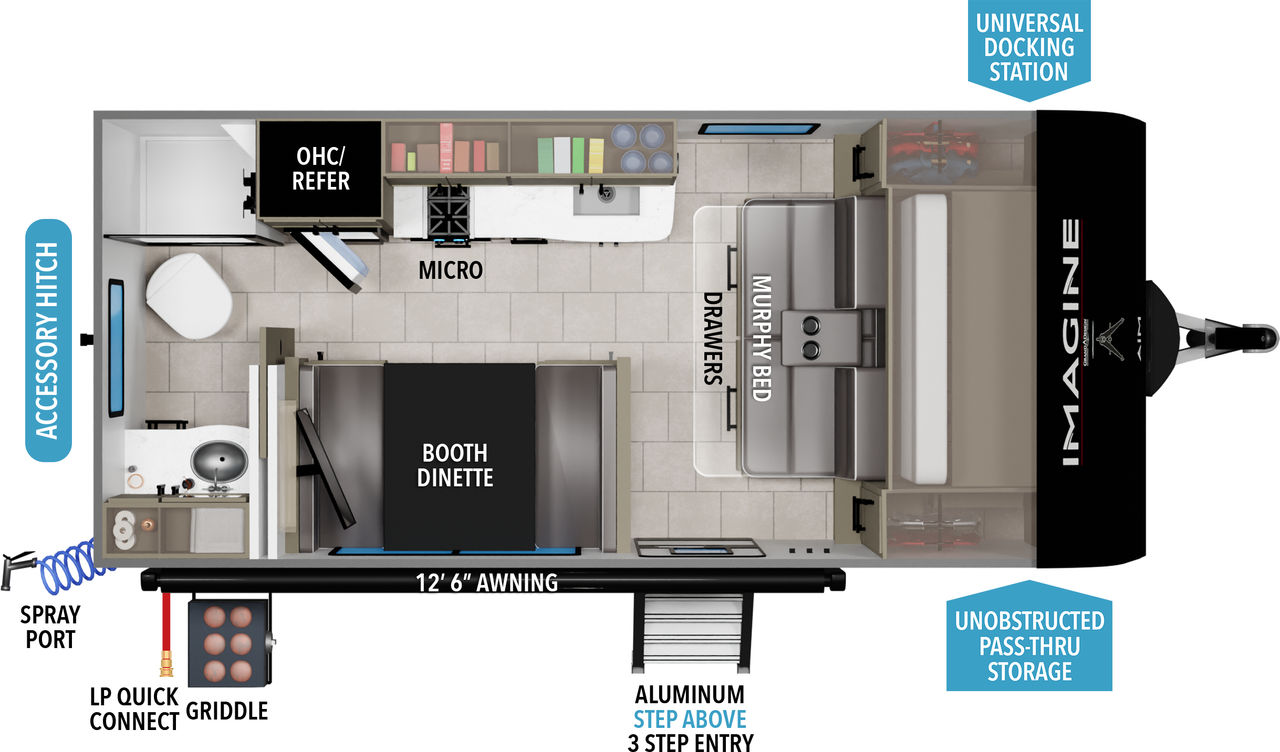

This travel trailer floorplan features a rear bathroom with front Queen Murphy Bed.

    Hitch
    378
    UVW
    3,781
    GVWR
    4,795
    Length
    19' 11"
    Height
    10' 11"
    Sleeps
    4
    MSRP
    $32,333
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height10' 11"
    Exterior Length19' 11"
    Exterior Width8'
    Exterior Width (w/ slide out)8'
    Interior Height78

    WEIGHTS
    Hitch / Pin Weight378
    UVW3,781
    GVWR4,795

    CAPACITY
    Fresh Water Capacity37
    Gray Water Capacity45
    Waste Water Capacity37
    Propane Tanks2
    LPG40
    Sleeping Capacity4
    APPLIANCES
    Water HeaterOn-Demand
    Refrigerator6.20 cu. ft.
    Furnace20,000 BTU
    AC13,500 BTU

    RUNNING GEAR
    Axles1
    Wheel Size15 in.
    Tire SizeST225/75R15LRE

    CONSTRUCTION
    Construction TypeAluminum Cage
    Floor R-ValueR-30
    Wall R-ValueR-7
    Roof R-ValueR-40
    Slide Room R-ValueR-7
    DIMENSIONS
    Standard Bed60 X 76
    Standard BunkN/A
    Shower24 X 32

    EXTERIOR
    SlidesN/A
    Awnings1
    Awning Length12' 6"
    EXTERIOR
    • Backup Camera Prep
    • 80% Tint Radius Safety Glass Windows
    • 20# LP Bottles (2) w/ Level Gauges
    • Radius Entry Door
    • High-Capacity Water Pump
    • Battery Kill Switch (Pass Thru)
    • Extra Large 2” Fresh Water Drain Valve
    • Oversized Tank Capacities
    • Dedicated Sewer Hose Carrier
    • Universal Docking Station
    • Spare Tire and Carrier
    • Front Rock Guard
    • Accessory Hitch Receiver
    • Exterior Cooking Griddle w/ Metal Pullout Drawer
    • Power Tongue Jack
    • Tuff-Ply Pass Thru Flooring

    CONSTRUCTION
    • Gel Coated Fiberglass Exterior
    • One-Piece Roof Membrane with Limited Lifetime Warranty
    • Easy Access Low Point Drain Valves
    • Friction Hinge Entry Door
    • Magnetic Storage Door Catches
    • Laminated Aluminum Framed Rear Wall (R-7)
    • Laminated Aluminum Framed Side Walls (R-7)
    • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
    • Laminated Aluminum Framed Main Floor (R-30)
    • 5" Radius Wood Framed Roof (R-40)
    • Heated and Enclosed Underbelly with Suspended Tanks
    • Designated Heat Duct to Subfloor
    • High Density Roof Insulation with Attic Vent
    • Moisture Barrier Floor Enclosure
    • Double Insulated Roof and Front Wall
    • Heated and Enclosed Dump Valves

    RUNNING GEAR
    • Aluminum Rims

    FRAME & CHASSIS
    • Power Tongue Jack
    INTERIOR
    • Solid Drawer Fronts
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Face Frames
    • Ball Bearing Full Extension Drawer Glides
    • Large Panoramic Window
    • 78" Interior Ceiling
    • Telescoping Dinette Table
    • Residential Cabinetry
    • Premium Window Treatments
    • Wireless Pop-Up Charger w/ 2 USB Outlets

    KITCHEN
    • Residential Countertops
    • 2-Burner Cook Top
    • Stainless Steel Sink

    ELECTRICAL
    • 6" Coiled Break-away Cable
    • Adjustable Power Awning w/ LED Lights
    • LED Interior Lighting
    • 30 AMP Service
    • Detachable Power Cord
    • Motion Sensor Entry Lighting (LED)
    • Compass Connect
    • Tire Linc TPMS Prep
    • 200W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 30 AMP Charge Controller

    HVAC
    • Cabinet Mounted Heat Ducts
    • High Efficiency AC System
    • High Capacity Furnace
    • Residential (Ductless) Heating System Throughout
    PLUMBING
    • On-Demand Tankless Water Heater
    • Black Tank Flush
    • Oversized Holding Tanks

    BEDROOM
    • Residential Bedspread
    • Queen Murphy Bed w/ Storage Drawers (14MS, 15RB, 16BL, 18BH)
    • Master Suite with Queen Bed (15BH & 16ML)

    BATHROOM
    • Residential Walk-In Shower
    • Skylight Over Shower
    • Power Vent Fan

    APPLIANCE
    • Convection Microwave
    • 12V Refrigerator

    ELECTRONICS
    • Hi Definition LED TV
    AIM Peace of Mind Package
    • Aluminum StepAbove Entry Steps
    • Dedicated Sewer Hose Carrier
    • Residential Cabinetry
    • Universal Docking Station
    • On-Demand Tankless Water Heater
    • Black Tank Flush
    • Aluminum Rims
    • Spare Tire and Carrier
    • Front Rock Guard
    • Accessory Hitch Receiver
    • Premium Window Treatments
    • 6" Coiled Break-away Cable
    • Oversized Holding Tanks
    • Convection Microwave
    • Exterior Cooking Griddle w/Metal Pullout Drawer
    • Tuff-Ply Pass Through Flooring
    • Dual LP Tank Monitors
    AIM Ultimate Power Package
    • Adjustable Power Awning w/ LED Lights
    • LED Interior Lighting
    • 30 AMP Service
    • Hi Definition LED TV
    • Detachable Power Cord
    • High Efficiency AC System
    • Motion Sensor Entry Lighting (LED)
    • Power Tongue Jack
    • Compass Connect
    • Tire Linc TPMS Prep
    • Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
    • Wireless Pop-Up Charger w/Dual USB Ports
    AIM Four Season Protection Package
    • High Capacity Furnace
    • Heated and Enclosed Underbelly with Suspended Tanks
    • Designated Heat Duct to Subfloor
    • High Density Roof Insulation with Attic Vent
    • Moisture Barrier Floor Enclosure
    • Residential (Ductless) Heating System Throughout
    • Double Insulated Roof and Front Wall
    • Heated and Enclosed Dump Valves
     AIM Solar Package
    • 200W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 30 AMP Charge Controller
    • 12V Refrigerator
     AIM Enhancement Package (OPTIONAL)
    • 2nd Roof Mounted 200W Solar Panel & 2000W Inverter
    • Untamed Terrain 235/75R15 Tire Assembly
    • Tire Linc Tire Pressure Monitoring System
    • Factory Installed Backup Camera w/ Monitor
    • MAXAIRE Power Vent w/ Rain Sensor
