Reflection | 324MBS

Build and Price your Grand Design RV GDRV

$0

Country Code US CA

Contact Method

Yes, I would like to receive text messages from Grand Design. **Standard message and data rates may apply. You may opt out at any time.*

*MSRP shown in USD. Pricing does not include freight, tax, title, license or dealer prep charges. Because of our commitment to continuous product improvement, Grand Design Recreational Vehicles reserves the right to change prices, components, standards, options, specifications, and materials without notice and at any time. Be sure to review current product details with your local dealer before purchasing.

Features and Packages
included in the starting price:

Hitch
2,000

UVW
11,200

GVWR
13,995

Length
37'

Height
12' 3"

Sleeps
6

MSRP
$83,186

DOWNLOAD SPEC SHEET

Specifications
Features
Packages

OVERALL SIZE
Exterior Height	12' 3"
Exterior Height (w/opt. AC)	12' 11"
Exterior Length	37'
Exterior Width	8'
Exterior Width (w/ slide out)	13' 10"
Interior Height	N/A

WEIGHTS
Hitch / Pin Weight	2,000
UVW	11,200
GVWR	13,995

CAPACITY
Fresh Water Capacity	74
Gray Water Capacity	87
Waste Water Capacity	47
Propane Tanks	2
LPG	60
Sleeping Capacity	6

APPLIANCES
Water Heater	Tankless
Refrigerator	16 cu. ft.
Furnace	35,000 BTU
AC	15,000 BTU

RUNNING GEAR
Axles	2
Wheel Size	16 in.
Tire Size	ST235/80R16 LRE

CONSTRUCTION
Construction Type	Aluminum Cage
Floor R-Value	R-30
Wall R-Value	R-9
Roof R-Value	R-40
Slide Room R-Value	R-9

DIMENSIONS
Standard Bed	60 X 80 Queen Bed
Standard Bunk	36 x 72", 44 x 74"
Shower	30 x 36"

EXTERIOR
Slides	3
Awnings	1
Awning Length	19'

EXTERIOR

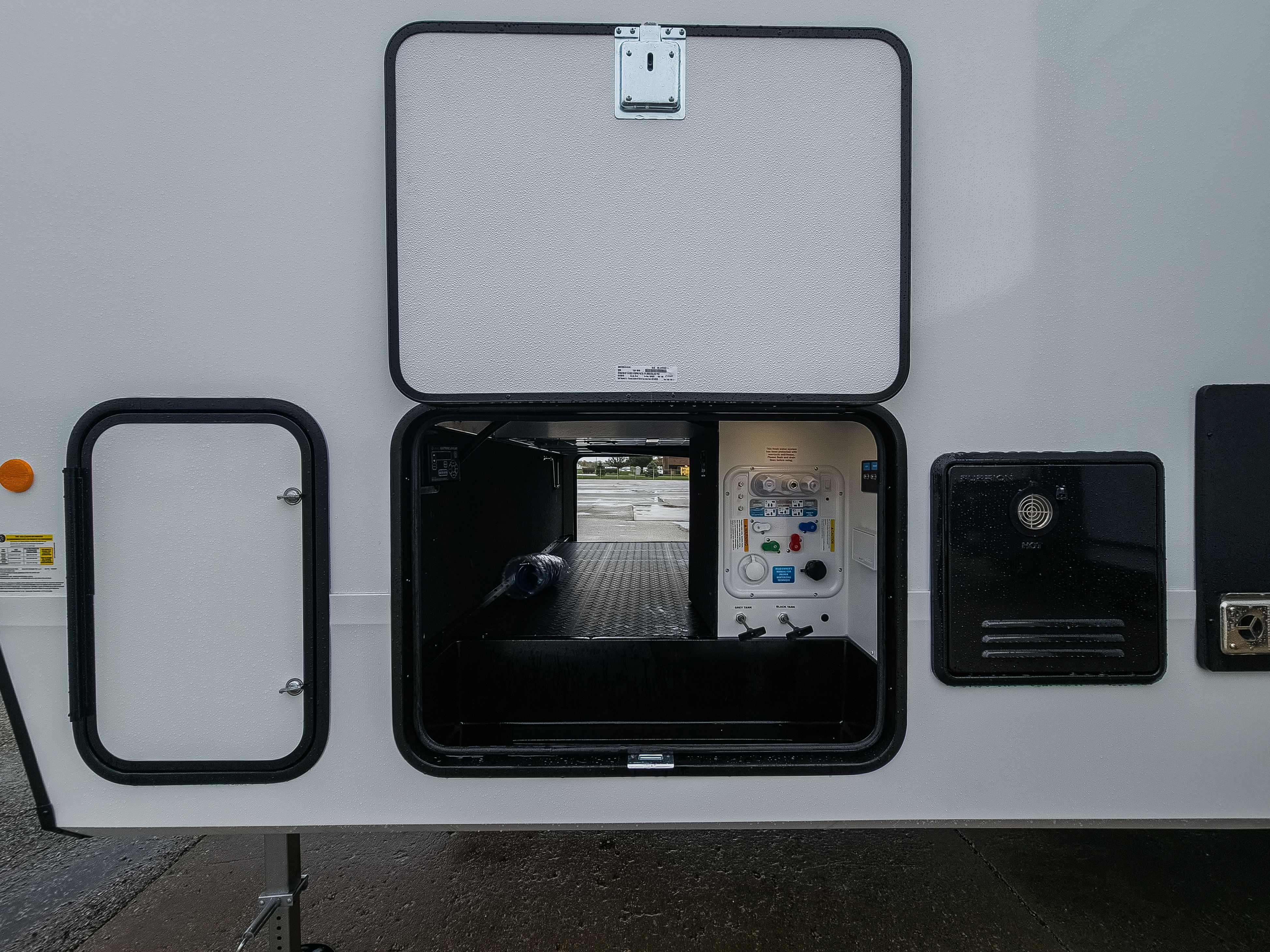

80% Tint Radius Safety Glass Windows Extended Pin Box 30# LP Bottles (2) 30" Radius Entry Door Outside Shower Factory Installed Roof Ladder Step-Above with Lift-Assist Entry Steps LP Quick Connect 6' Coiled Break Away Cable Unobstructed Pass Thru Storage "One Touch" Electric LED Awning

CONSTRUCTION
Aerodynamic Front Cap with Max Turn Radius High-Gloss Gel Coat Exterior Sidewalls Residential 5" Truss Rafters (16" O.C.) Walk On Roof Decking Fiberglass and Radiant Foil Roof and Front Cap Insulation One-Piece TPO Roof Membrane with Limited Lifetime Warranty Laminated Aluminum Framed Rear Wall (R-9) Laminated Aluminum Framed Side Walls (R-9) Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9) Aluminum Framed Main Floor (R-30) Residential Wood Framed Roof (R-40) Metal Slam Latch Front Cargo Doors Painted Fiberglass Front Cap 2" Receiver Hitch Upgrade

RUNNING GEAR
Rubberized Suspension Equalizer Aluminum Wheels with Goodyear Endurance Tires Aluminum Rims Spare Tire and Carrier Anti-Lock Brake System

INTERIOR
Residential Hardwood Cabinet Doors Solid Hardwood Drawer Fronts Louvered Tread Steps to Bedroom Solid Core Cabinet Stiles Pre-drilled and Screwed Cabinetry Ball Bearing Full Extension Drawer Glides Tri-Fold Hide-A-Bed Sofa (Model Specific) Large Panoramic Slide Room Windows Premium Congoleum Flooring Ductless Flooring Throughout Living Area Residential Style Window Treatments Blackout Roller Shade Window Covering Theater Seats Residential Booth Dinette Solid Surface Countertops & Sink Covers

KITCHEN
Hardwood Galley Slide Trim Molding Deep Seated Stainless Steel Sink Modern Glass Refrigerator Door Fronts High-Rise Faucet w/ Pullout Sprayer

ELECTRICAL
Marine Grade LED Hitch Light LED "Night Lights" Under Bedroom Slide Battery Kill Switch in Pass Thru Storage Area LED Lighting with Motion Sensors (Key Areas) Universal All-In-One Docking Station 370W Roof Mounted Solar Panel Roof Mounted Quick Connect Plugs 60 Amp Charge Controller Inverter Prep Solar Disconnect

HVAC
Heat Duct and A/C Vents in Bathroom Power Vent Fan Bedroom Heat Registers Adjustable A/C Vents 15K Ducted Main A/C

PLUMBING
High-Capacity Water Pump w/ Interior & Exterior Switch Extra Large 2" Fresh Water Drain Valve Easy Access Low Point Drain Valves On-Demand Tankless Water Heater

BEDROOM
Functional Wardrobe Closet 60 x 80 Mattress with Residential Bedspread Oversized Bed Base Storage Residential Bedspread

BATHROOM
Spacious Shower with Glass Door Large Vanity Top w/ Deep Sink Large Medicine Cabinet with Mirror Porcelain Toilet with Foot Flush

APPLIANCE
12V 16 Cu. Ft. Refrigerator 30'' Stainless Steel Microwave

ELECTRONICS
Cable/SAT Prep

Peace of Mind Package

Residential Cabinetry
Universal All-In-One Docking Station
Metal Slam Latch Front Cargo Doors
On Demand Tankless Water Heater
Porcelain Toilet with Foot Pedal Flush
High-Rise Faucet with Pullout Sprayer
Step-Above Entry Steps with Lift Assist

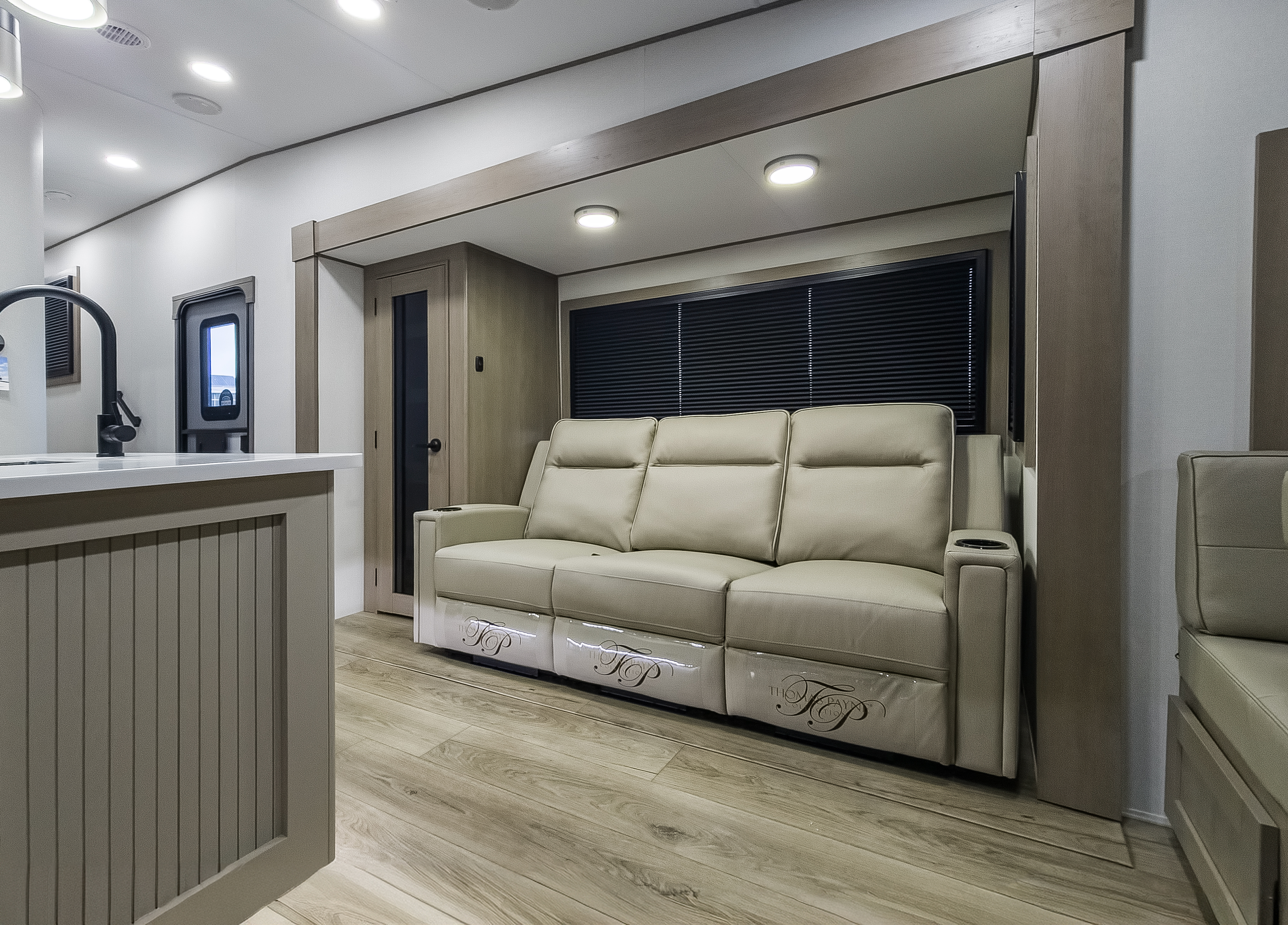

Theater Seats
Painted Fiberglass Front Cap

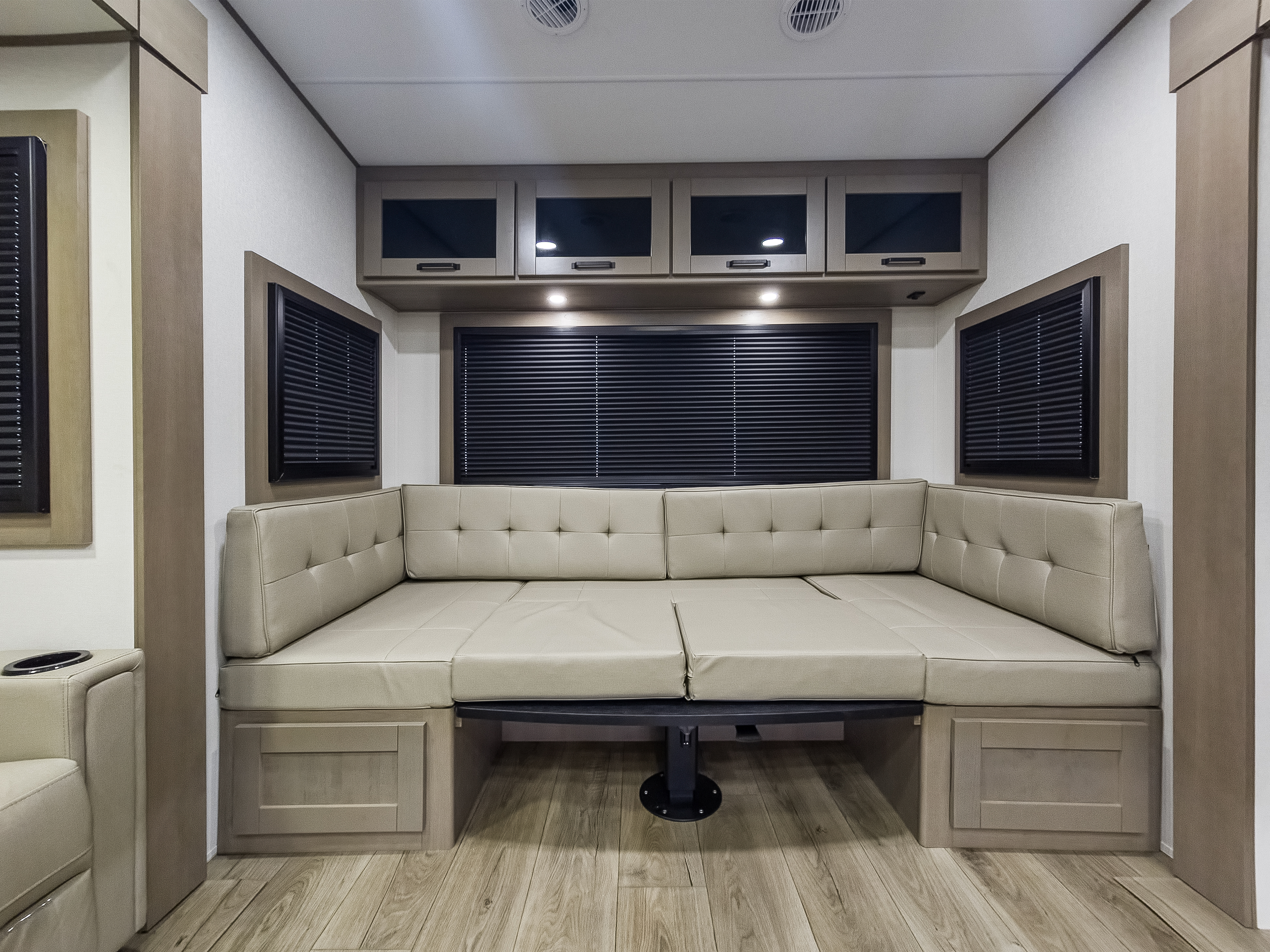

Residential Booth Dinette
LP Quick Connect
Roller Shades
6' Coiled Break Away Cable
Deep Seated Stainless Steel Kitchen Sink
Walk-on Roof
Aluminum Rims
Spare Tire & Carrier
2" Receiver Hitch
Solid Surface Countertops
Solid Surface Sink Covers

Ultimate Power Package
30" Stainless Steel Microwave 15K BTU Ducted A/C "One-Touch" Electric LED Awning Maxx Air Fan AM/FM/HDMI/Bluetooth Stereo 50 AMP Service, Wired and Framed for 2nd A/C High Definition LED Television Detachable Power Cord with LED Light One Touch Automatic Leveling System LED Interior Lighting Motion Sensor Pass Thru Lighting (LED) Motion Sensor Entry Lighting (LED) Compass Connect Tire Linc TPMS

Arctic 4-Seasons Protection Package
35K BTU High Capacity Furnace Double Insulated Roof and Front Cap Heated and Enclosed Dump Valves Heated and Enclosed Underbelly w/ Circulating Heat Thermofoil Insulation under Holding Tanks EZ Winterization Valve in Utility Center Insulated Slide-out Floors Dual Attic Vents 12V Heat Pads on Holding Tanks Heated Pass Thru Storage Area

Solar Package
370W Roof Mounted Solar Panel Roof Mounted Quick Connect Plugs 60 Amp Charge Controller 12V 16 Cu. Ft. Refrigerator Inverter Prep Solar Disconnect
