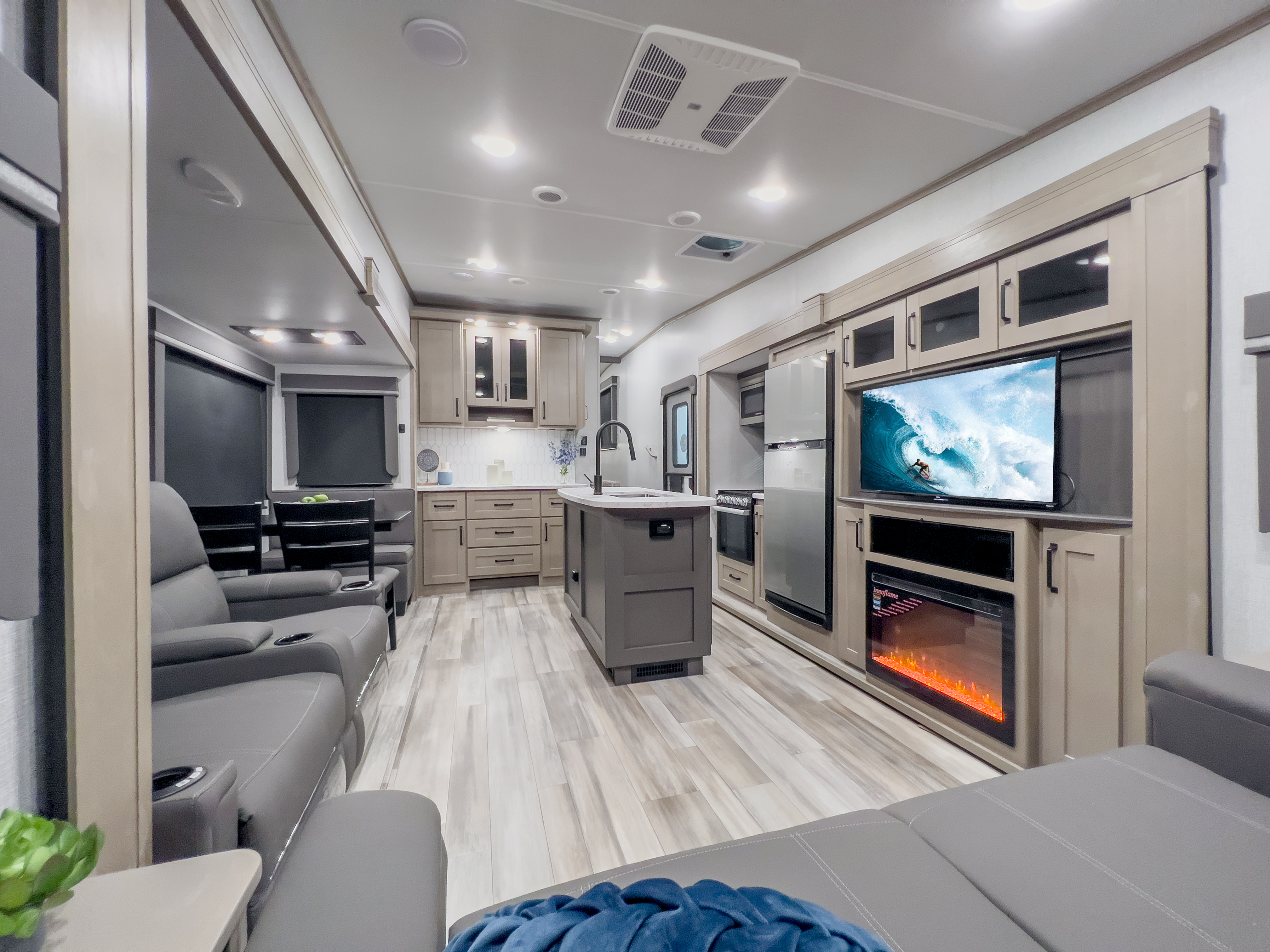

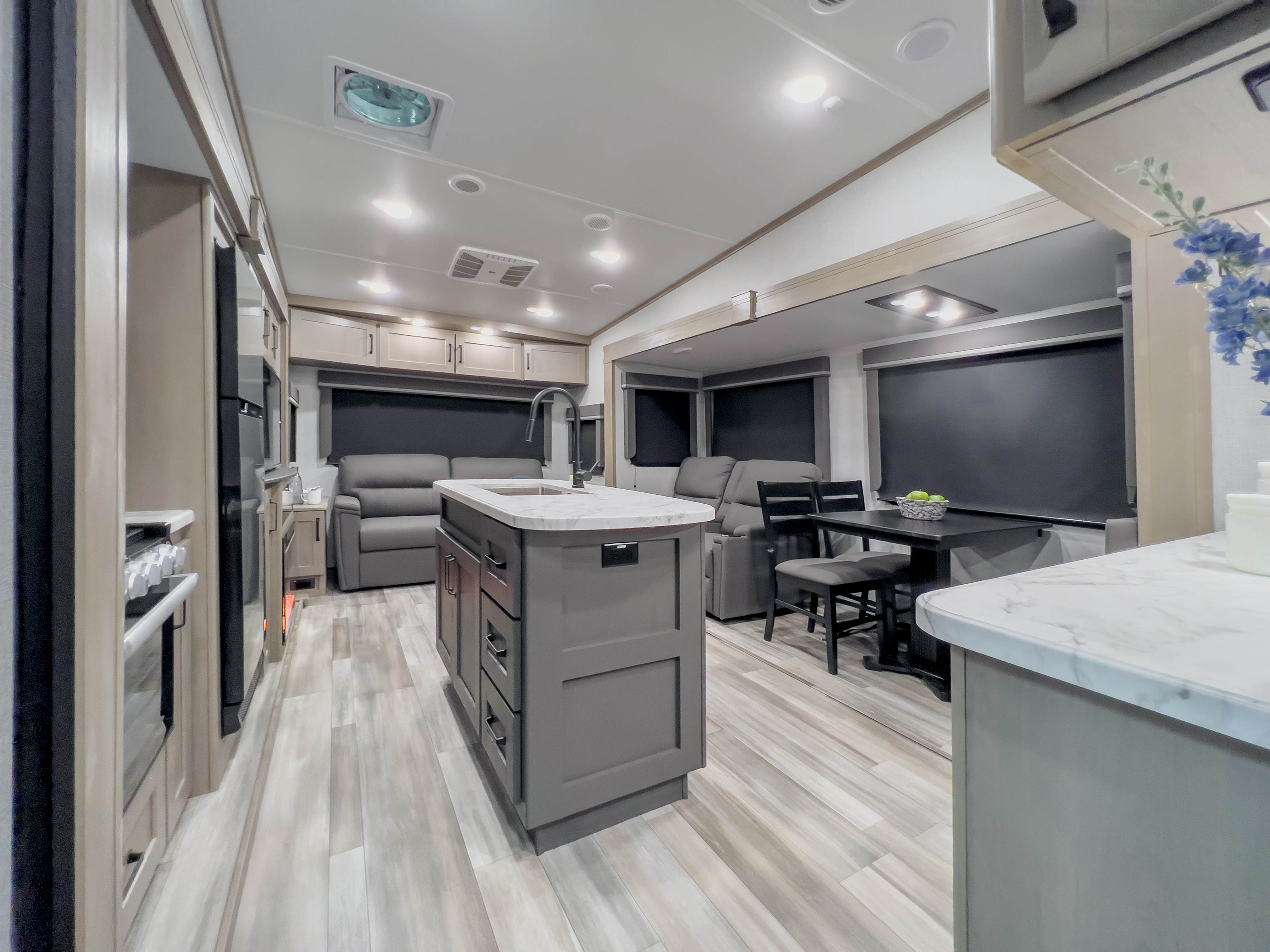

Live in the lap of luxury with this rear living 5th wheel. This lounge is meant to entertain, whether you are a small family or a group of friends that want to get away without sacrificing comfort. The tri-fold sofa, free standing dinette, and theater seating offer plenty of room for four to kick back, relax, and have fun.

Hitch
1,384
UVW
8,566
GVWR
10,995
Length
30' 11"
Height
12' 3"
Sleeps
4
MSRP
$75,214
DOWNLOAD SPEC SHEET

OVERALL SIZE
Exterior Height 12' 3"
Exterior Height (w/opt. AC)    12' 11"
Exterior Length 30' 11"
Exterior Width 8'
Exterior Width (w/ slide out) 13' 1"
Interior Height N/A

WEIGHTS
Hitch / Pin Weight 1,384
UVW 8,566
GVWR 10,995

CAPACITY
Fresh Water Capacity 56
Grey Water Capacity 78
Waste Water Capacity 39
Propane Tanks 2
LPG 60
Sleeping Capacity 4
APPLIANCES
Water Heater Tankless
Refrigerator 10 cu. ft.
Furnace 30,000 BTU
AC 15,000 BTU

RUNNING GEAR
Axles 2
Wheel Size 15 in.
Tire Size ST225/75R15LRE

CONSTRUCTION
Construction Type Aluminum Cage
Floor R-Value R-30
Wall R-Value R-9
Roof R-Value R-40
Slide Room R-Value R-9
DIMENSIONS
Standard Bed 60 X 80 Queen Bed
Standard Bunk N/A
Shower 30 x 36

EXTERIOR
Slides 2
Awnings 1
Awning Length 13'
EXTERIOR
  • 80% Tint Radius Safety Glass Windows
  • 90 Degree Turning Point Pin Box
  • 30# LP Bottles (2)
  • 30" Radius Entry Door
  • Outside Shower
  • Factory Installed Roof Ladder
  • Exterior Cable Hookup (Sidewall)

CONSTRUCTION
  • Aerodynamic Front Cap with Max Turn Radius
  • Gel Coated Exterior Sidewalls
  • Residential 5" Truss Rafters (16" O.C.)
  • Walk On Roof Decking
  • Fiberglass and Radiant Foil Roof and Front Cap Insulation
  • One-Piece TPO Roof Membrane with 18-Year Warranty
  • Laminated Aluminum Framed Rear Wall (R-9)
  • Laminated Aluminum Framed Side Walls (R-9)
  • Laminated Alumium Framed Roof and End Walls in Slide Rooms (R-9)
  • Aluminum Framed Main Floor (R-30*)
  • Residential Wood Framed Roof (R-40*)

RUNNING GEAR
  • Rubberized Suspension Equalizer
  • Aluminum Wheels with E-Rated Tires
  • Under Carriage Spare Tire and Carrier

FRAME & CHASSIS
  • 90 Degree Turning Point Pin Box
  • "One-Touch" Automatic Leveling System
INTERIOR
  • Matte Black Fixtures and Hardware
  • Hardwood Galley Slide Trim Moldings
  • Solid Hardwood Drawer Fronts
  • Louvered Tread Steps to Bedroom
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Slide Room Windows
  • Heated Wall Hugger Theatre Seats w/LED Lights & Massage (Most Models)
  • Premium Congoleum Flooring
  • Ductless Flooring Throughout Living Area
  • Residential Style Window Treatment
  • Blackout Roller Shades
  • LED Lighting with Motion Sensors (Key Areas)

KITCHEN
  • Deep Seated Stainless Steel Sink

ELECTRICAL
  • Marine Grade LED Hitch Light
  • Battery Kill Switch in Pass Thru Storage Area
  • Outside Speakers
  • 180W/370W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 50 Amp Charge Controller
  • Inverter Prep

HVAC
  • Adjustable A/C Vents
  • 35k BTU High Capacity Furnace
PLUMBING
  • High-Capacity Water Pump with Interior and Exterior Switch
  • Extra Large 2" Fresh Water Drain Valve
  • Easy Access Low Point Drain Valves

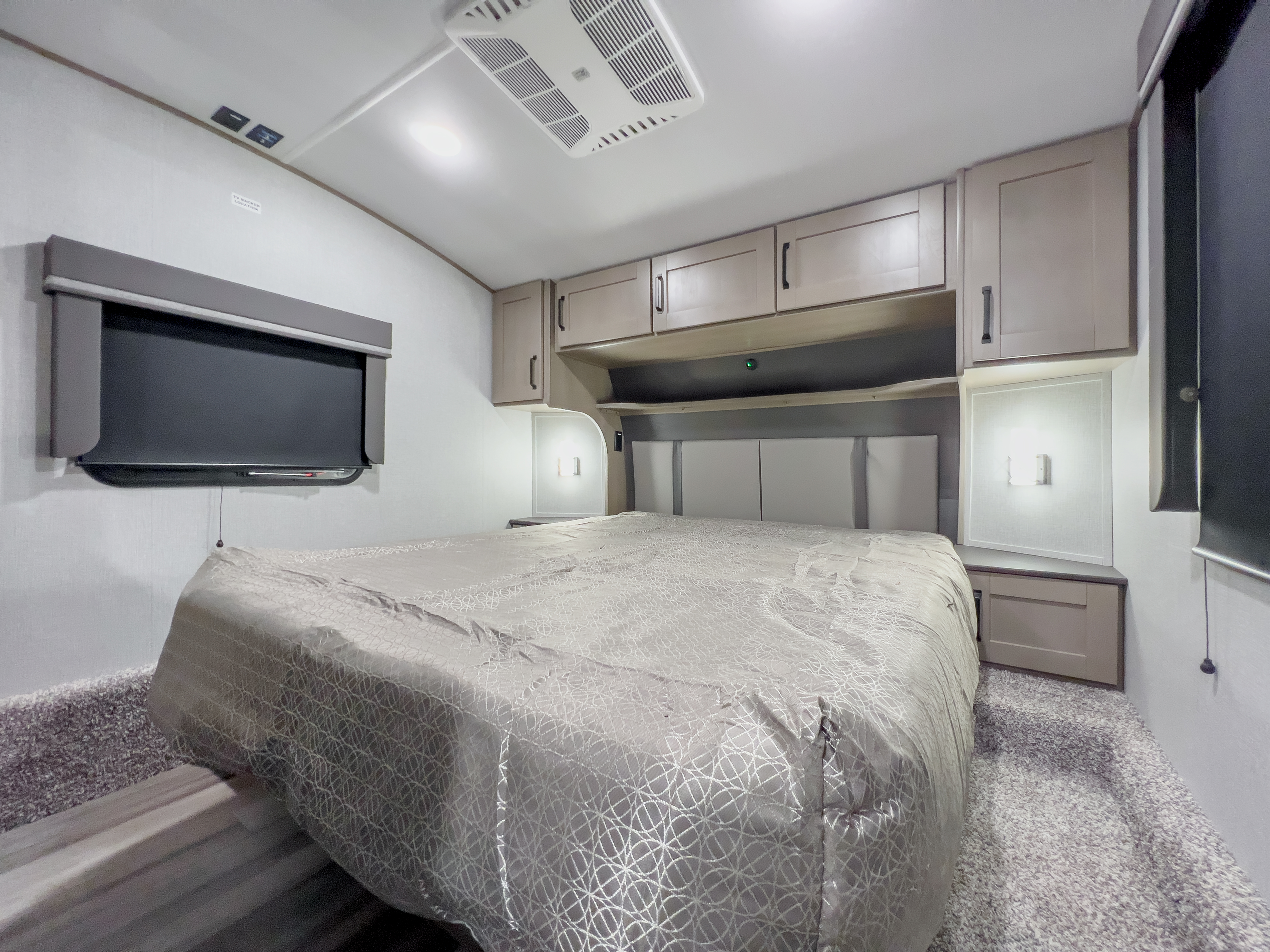

BEDROOM
  • Functional Wardrobe Closet
  • Oversized Bed Base Storage
  • 60 x 80 Mattress with Residential Bedspread
  • Bedroom Heat Registers

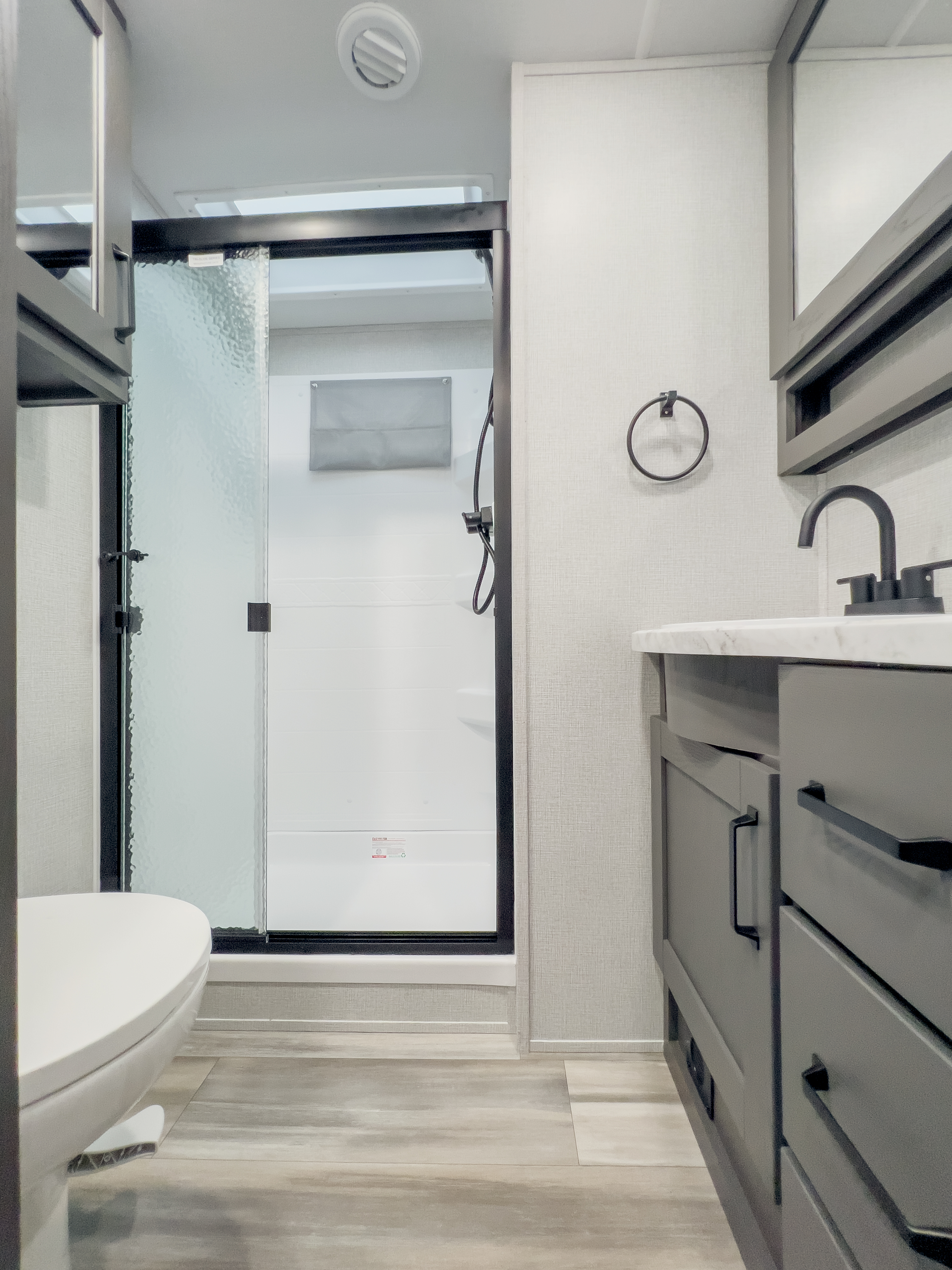

BATHROOM
  • 30 x 36 Residential Walk-In Shower
  • Wide View Skylight Over Shower
  • Heat Duct and A/C Vents in Bathroom
  • Power Vent Fan
  • Large Vanity Top w/ Deep Sink
  • Large Medicine Cabinet with Mirror

APPLIANCE
  • 12V 20 or 16 Cu. Ft. Refrigerator

ELECTRONICS
  • Cable/SAT Prep
Peace of Mind Package
  • Residential Cabinetry
  • Universal All-In-One Docking Station
  • Metal Slam Latch Front Cargo Doors
  • On Demand Water Heater
  • Porcelain Toilet with Foot Flush
  • High-Rise Faucet with Pullout Sprayer
  • Aluminum Entry Steps
  • Wall Hugger Theatre Seats
  • Painted Fiberglass Front Cap
  • Residential Booth Dinette
  • LP Quick Connect
  • Self Adjusting Brakes
  • Roller Shades
  • 6' Coiled Break Away Cable
  • Deep Seated Stainless Steel Kitchen Sink
  • Walk-on Roof
  • Aluminum Rims
  • Spare Tire & Carrier
  • Nitrogen Filled Radial Tires
  • 2” Receiver Hitch Upgrade
  • 90 Degree Turn Radius Pin Box (Turning Point)
Ultimate Power Package
  • 30" Stainless Steel Microwave
  • "One-Touch" Electric LED Awning
  • High Efficiency A/C Systems
  • AM/FM/CD/DVD HDMI Bluetooth Stereo
  • 50 AMP Service, Wired and Framed for 2nd A/C
  • High Definition LED TV
  • Detachable Power Cord with LED Light
  • "One-Touch" Automatic Leveling System
  • LED Interior Lighting
  • Motion Sensor Pass Thru Lighting(LED)
  • Motion Sensor Entry Lighting (LED)
  • Compass Connect
  • Tire Linc TPMS
  • MAXAIRE Power Vent w/ Rain Sensor
Arctic 4-Seasons Protection Package
  • 35k BTU High Capacity Furnace
  • Double Insulated Roof & Front Cap
  • Heated & Enclosed Dump Valves
  • Heated & Enclosed Underbelly w/Circulating Heat
  • Thermofoil Insulation under Holding Tanks
  • EZ Winterization Valve in Utility Center
  • Insulated Slide-out Floors
  • Dual Attic Vents
  • 12v Heat Pads on Holding Tanks
  • Heated Pass Thru Storage Area
