Influence | 3804DS

Influence
2903RL

Hitch

2,190

UVW

11,800

Length

34' 5"

3203GK

Hitch

2,471

UVW

12,712

Length

35' 10"

NEW

3503GK

Hitch

2,670

UVW

13,868

Length

38' 3"

3704BH

Hitch

2,728

UVW

14,798

Length

40' 4"

3804DS

Hitch

2,911

UVW

14,603

Length

42' 6"

NEW

Build and Price your Grand Design RV GDRV

$0

Country Code US CA

Contact Method

Yes, I would like to receive text messages from Grand Design. **Standard message and data rates may apply. You may opt out at any time.*

*MSRP shown in USD. Pricing does not include freight, tax, title, license or dealer prep charges. Because of our commitment to continuous product improvement, Grand Design Recreational Vehicles reserves the right to change prices, components, standards, options, specifications, and materials without notice and at any time. Be sure to review current product details with your local dealer before purchasing.

Features and Packages
included in the starting price:

Hitch
2,911

UVW
14,603

GVWR
16,800

Length
42' 6"

Height
13' 5"

Sleeps
6

MSRP
$110,511

DOWNLOAD SPEC SHEET

Specifications
Features
Packages

OVERALL SIZE
Exterior Height	13' 5"
Exterior Height (w/opt. AC)
Exterior Length	42' 6"
Exterior Width	8' 5"
Exterior Width (w/ slide out)	N/A
Interior Height	8' 5"

WEIGHTS
Hitch / Pin Weight	2,911
UVW	14,603
GVWR	16,800

CAPACITY
Fresh Water Capacity	83
Gray Water Capacity	106
Waste Water Capacity	106
Propane Tanks	2
LPG	60
Sleeping Capacity	6

APPLIANCES
Water Heater	Tankless
Refrigerator	16 cu. ft.
Furnace	35,000 BTU
AC	30,000 BTU

RUNNING GEAR
Axles	2
Wheel Size	17.50 in.
Tire Size	ST215/75R 17.5 LRH

CONSTRUCTION
Construction Type	Laminated
Floor R-Value	R-45
Wall R-Value	R-11
Roof R-Value	R-40
Slide Room R-Value	R-11

DIMENSIONS
Standard Bed	60 X 80 Queen Bed (King Opt.)
Standard Bunk	N/A
Shower	30 x 48" (Front Bedroom), 30 x 36" (Rear Bedroom)

EXTERIOR
Slides	4
Awnings	2
Awning Length	11' 15' 5"

EXTERIOR
Exterior Spray Port (Door Side) Influence Solar Package (330w Solar Panel, Controller, Inverter Prep) Gel Coat Exterior Sidewalls Color Matched Fender Skirt TPO Roof Covering w/ Limited Lifetime Warranty Slam-Latch Baggage Doors Magnetic Entry and Baggage Door Catches Entry Door w/Privacy Glass Framed Tinted Window Painted Gel Coat Fiberglass Front Cap Exterior Security Light Roof Ladder 17.5" Spare Tire (Undermount) Power Patio Awning with Integrated LED Lighting Sewer Hose Storage Area Keyed Alike MORryde Strut Assist Entry Steps

CONSTRUCTION

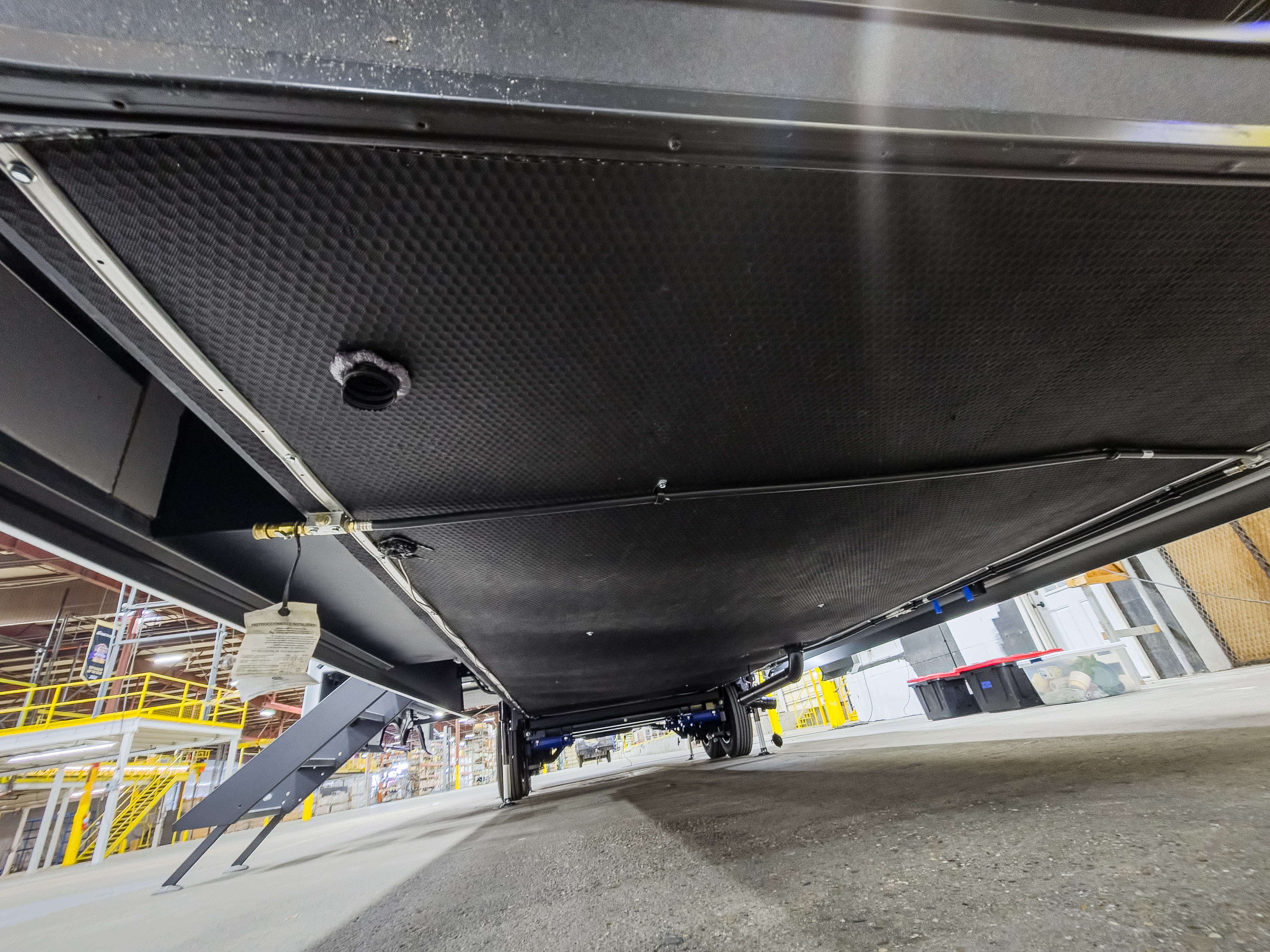

5-Side Aluminum Cage Construction Walk-On Roof Fully Enclosed Underbelly w/ Heated Tanks and Storage

RUNNING GEAR
Heavy Duty 17.5 H-Rated Tires Heavy Duty 7,000 lb. Axles MORryde® CRE3000 Suspension System Tow Assist ABS & Sway Mitigation System

FRAME & CHASSIS
Upgraded Axle Hangers 6-Point Electric Leveling System (4-Point on 2903RL) 101" Widebody Construction

INTERIOR
Glass Cabinet Door Inserts (Select Areas) Under Step Shoe Storage Plywood Drawer Bottoms Fireplace with Electric Heater Easy Clean Solid Surface Steps Premium Roller Shades Congoleum Flooring w/ 3-Year Warranty Hallway Handrail Recessed LED Ceiling Lighting Interior LED Accent Lighting Signature Dinette Table w/ 4 Padded Chairs Theatre Seating Tri-Fold Hide-A-Bed Sofa Smoke Detector, LP Alarm, Carbon Monoxide Alarm

KITCHEN
Oversized Kitchen Pantry LED Rope Lighting in Pantry Residential Kitchen Faucet with Pullout Sprayer Hardwood Kitchen Light Soffit Washer/Dryer Prep Hardwood Cabinet Doors Solid Surface Countertops Smart Sink w/ removeable cutting board, produce strainer and glass rinser

ELECTRICAL
55 Amp Converter 50 Amp Service w/Detachable Power Cord 12-Volt Battery Disconnect

HVAC
12-Volt High Power MaxxAir Fan with Rain Sensor Stealth A/C System 35K BTU High Capacity Furnace Attic Vent High Capacity Heat Ducts

PLUMBING
On Demand Tankless Water Heater 12V Tank Heaters All-In-One Enclosed and Heated Utility Center

BEDROOM
Residential Style Headboard Under Bed Storage Area Individually Switched Reading Lights Over Bed 60" x 80" Queen Bed Window Above Master Bed Headboard Dresser w/ Slide-Top Hidden Storage Night Stands with USB Ports Bedside 110-Volt Outlets (2)

BATHROOM
One-Piece Fiberglass Shower with Glass Door Porcelain Toilet Undermount Lav Sink

APPLIANCE
Professional Grade Stainless Steel Cooktop w/ Built-in Oven 12-Volt 16 Cu. Ft. Refrigerator Microwave

ELECTRONICS
Under Unit LED Light Kit TravlFi On-Board WiFi Ready Winegard Antenna Back-Up Camera Prep Tire Linc TPMS System LED TV in Master Bedroom Satellite/Cable Prep Exterior Cable/Satellite Plug-In LED Smart TV in Living Area Rockford Fosgate Stereo Ent. System w/ HDMI and App Controls Exterior Speakers

Peace of Mind Package
Exterior Cable/Satellite Plug-In Dresser w/ Slide-Top Hidden Storage MORryde® CRE3000 Suspension System Tow Assist ABS & Sway Mitigation System 17.5" Spare Tire (Undermount) Power Patio Awning with Integrated LED Lighting Sewer Hose Storage Area Kitchen 12-Volt High Power MaxxAir Fan with Rain Sensor Washer/Dryer Prep Easy Clean Solid Surface Steps

Max Built Construction Package

Satellite/Cable Prep
101" Widebody Construction
Heavy Duty 7,000 lb. Axles
17.5" H- Rated Aluminum Wheels
Gel Coat Exterior Sidewalls
Color Matched Fender Skirt
5-Side Aluminum Cage Construction
Walk-On Roof
TPO Roof Covering w/ Limited Lifetime Warranty
Slam-Latch Baggage Doors
Magnetic Entry and Baggage Door Catches
Entry Door w/Privacy Glass
Framed Tinted Windows
Painted Gel Coat Fiberglass Front Cap
Exterior Security Light
Roof Ladder
50 Amp Service w/Detachable Power Cord
12-Volt Battery Disconnect

Residential Living Package

LED Smart TV in Living Area
Rockford Fosgate Stereo Ent. System w/ HDMI and App Controls
Exterior Speakers
Night Stands with USB Ports
Bedside 110-Volt Outlets (2)
Keyed Alike (One Key For All Entry and Baggage Doors)
SolidStep Quad Entry Steps
Stealth A/C System
Roller Shade Window Coverings
Congoleum Flooring w/ 3-Year Warranty
Hallway Handrail
Recessed LED Ceiling Lighting
Interior LED Accent Lighting
Hardwood Cabinet Doors
Signature Dinette Table w/ 4 Padded Chairs
Theatre Seating
Tri-Fold Hide-A-Bed Sofa
Smoke Detector, LP Alarm, Carbon Monoxide Alarm
Solid Surface Countertops
Smart Sink w/ removeable cutting board, produce strainer and glass rinser

Weather-Tek Package
35K BTU High Capacity Furnace Fully Enclosed Underbelly w/ Heated Tanks and Storage Attic Vent High Capacity Heat Ducts All-In-One Enclosed and Heated Utility Center
